Mid.CBF Pre-AA2-MVP Design

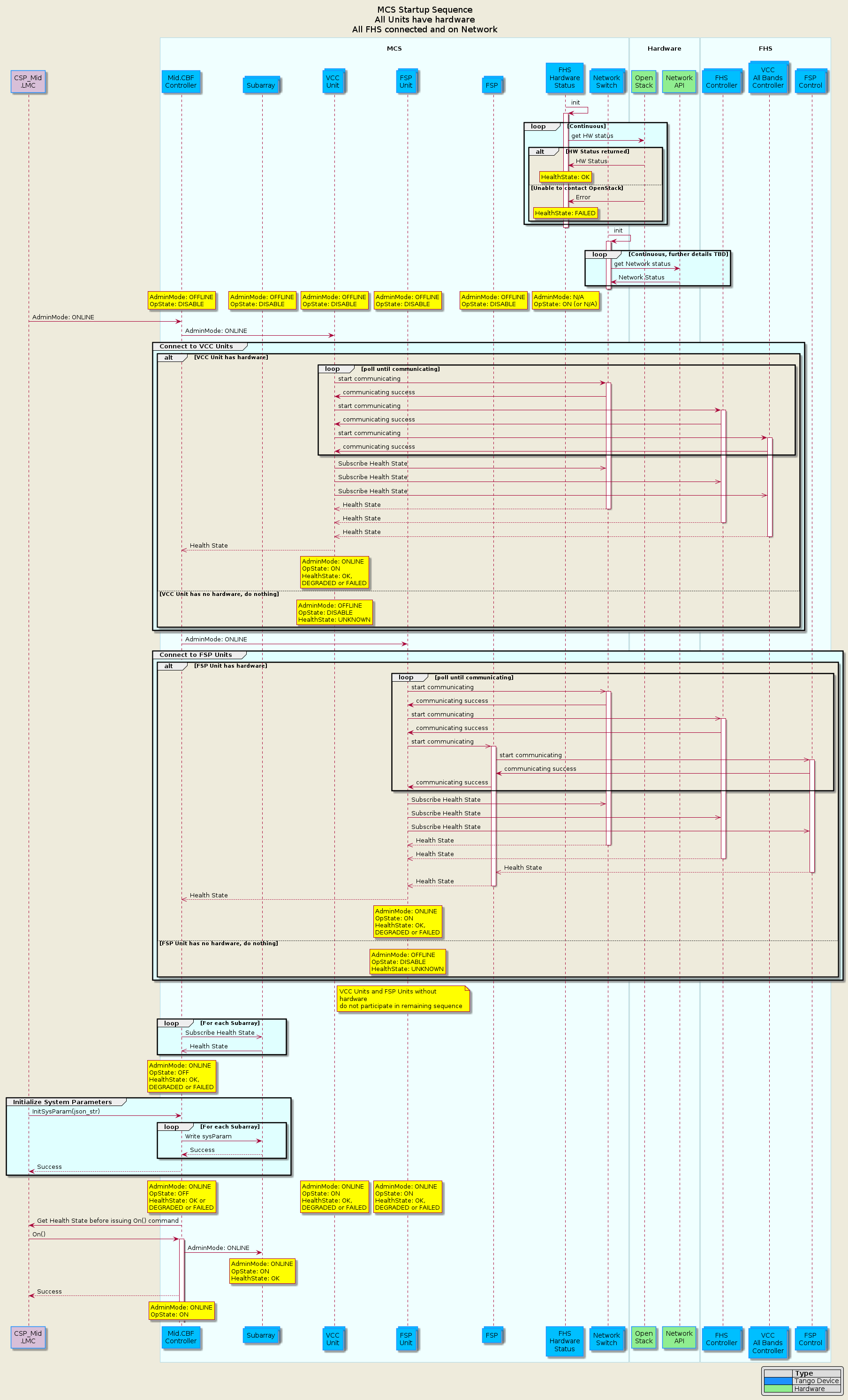

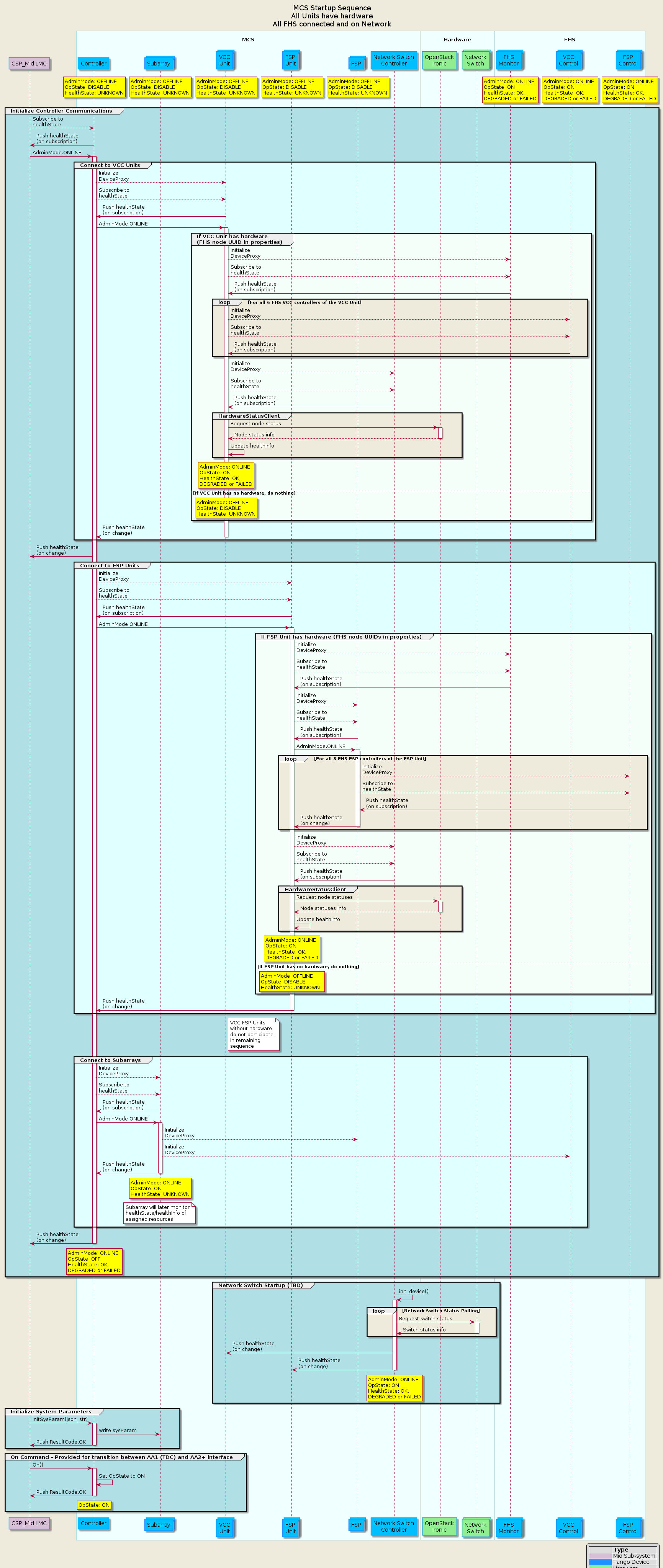

Startup Sequence

$@startuml startup !include mid-cbf-puml-definitions.txt title MCS Startup Sequence\nAll Units have hardware\nAll FHS connected and on Network participant "CSP_Mid.LMC" as lmc #Thistle box "\nMCS\n" participant "Controller" as controller collections "Subarray" as subarray collections "VCC\nUnit" as vcc_unit collections "FSP\nUnit" as fsp_unit collections "FSP" as mcs_fsp participant "Network Switch\nController" as network end box box "\nHardware\n" participant "OpenStack\nIronic" as ironic #LightGreen collections "Network\nSwitch" as network_api #LightGreen end box box "\nFHS\n" collections "FHS\nMonitor" as fhs_ctrl collections "VCC\nControl" as vcc_ctrl collections "FSP\nControl" as fsp_ctrl end box rnote over controller AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote / rnote over subarray AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote / rnote over vcc_unit AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote / rnote over fsp_unit AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote / rnote over mcs_fsp AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote / rnote over fhs_ctrl AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote / rnote over vcc_ctrl AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote / rnote over fsp_ctrl AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote group #PowderBlue Initialize Controller Communications lmc --> controller : Subscribe to\nhealthState lmc <- controller : Push healthState\n(on subscription) lmc -> controller : AdminMode.ONLINE activate controller group #LightCyan Connect to VCC Units controller --> vcc_unit : Initialize\nDeviceProxy controller --> vcc_unit : Subscribe to\nhealthState controller <- vcc_unit : Push healthState\n(on subscription) controller -> vcc_unit : AdminMode.ONLINE activate vcc_unit group #MintCream If VCC Unit has hardware\n(FHS node UUID in properties) vcc_unit --> fhs_ctrl : Initialize\nDeviceProxy vcc_unit --> fhs_ctrl : Subscribe to\nhealthState vcc_unit <- fhs_ctrl : Push healthState\n(on subscription) loop For all 6 FHS VCC controllers of the VCC Unit vcc_unit --> vcc_ctrl : Initialize\nDeviceProxy vcc_unit --> vcc_ctrl : Subscribe to\nhealthState vcc_unit <- vcc_ctrl : Push healthState\n(on subscription) end vcc_unit --> network : Initialize\nDeviceProxy vcc_unit --> network : Subscribe to\nhealthState vcc_unit <- network : Push healthState\n(on subscription) group HardwareStatusClient vcc_unit -> ironic : Request node status activate ironic vcc_unit <-- ironic : Node status info deactivate ironic vcc_unit -> vcc_unit : Update healthInfo end rnote over vcc_unit AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote else If VCC Unit has no hardware, do nothing rnote over vcc_unit AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote end controller <- vcc_unit : Push healthState\n(on change) deactivate vcc_unit end lmc <- controller : Push healthState\n(on change) group #LightCyan Connect to FSP Units controller --> fsp_unit : Initialize\nDeviceProxy controller --> fsp_unit : Subscribe to\nhealthState controller <- fsp_unit : Push healthState\n(on subscription) controller -> fsp_unit : AdminMode.ONLINE activate fsp_unit group #MintCream If FSP Unit has hardware (FHS node UUIDs in properties) fsp_unit --> fhs_ctrl : Initialize\nDeviceProxy fsp_unit --> fhs_ctrl : Subscribe to\nhealthState fsp_unit <- fhs_ctrl : Push healthState\n(on subscription) fsp_unit --> mcs_fsp : Initialize\nDeviceProxy fsp_unit --> mcs_fsp : Subscribe to\nhealthState fsp_unit <- mcs_fsp : Push healthState\n(on subscription) fsp_unit -> mcs_fsp : AdminMode.ONLINE activate mcs_fsp loop For all 8 FHS FSP controllers of the FSP Unit mcs_fsp --> fsp_ctrl : Initialize\nDeviceProxy mcs_fsp --> fsp_ctrl : Subscribe to\nhealthState mcs_fsp <- fsp_ctrl : Push healthState\n(on subscription) fsp_unit <- mcs_fsp : Push healthState\n(on change) deactivate mcs_fsp end fsp_unit --> network : Initialize\nDeviceProxy fsp_unit --> network : Subscribe to\nhealthState fsp_unit <- network : Push healthState\n(on subscription) group HardwareStatusClient fsp_unit -> ironic : Request node statuses activate ironic fsp_unit <-- ironic : Node statuses info deactivate ironic fsp_unit -> fsp_unit : Update healthInfo end rnote over fsp_unit AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote else If FSP Unit has no hardware, do nothing rnote over fsp_unit AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote end controller <- fsp_unit : Push healthState\n(on change) deactivate fsp_unit end note right of vcc_unit #White VCC FSP Units without hardware do not participate in remaining sequence end note group #LightCyan Connect to Subarrays controller --> subarray : Initialize\nDeviceProxy controller --> subarray : Subscribe to\nhealthState controller <- subarray : Push healthState\n(on subscription) controller -> subarray : AdminMode.ONLINE activate subarray subarray --> mcs_fsp : Initialize\nDeviceProxy subarray --> vcc_ctrl : Initialize\nDeviceProxy controller <- subarray : Push healthState\n(on change) deactivate subarray rnote over subarray AdminMode: ONLINE OpState: ON HealthState: UNKNOWN end rnote note over subarray #White Subarray will later monitor healthState/healthInfo of assigned resources. end note end lmc <- controller : Push healthState\n(on change) deactivate controller rnote over controller AdminMode: ONLINE OpState: OFF HealthState: OK, DEGRADED or FAILED end rnote end group group #PowderBlue Network Switch Startup (TBD) network -> network : init_device() activate network loop Network Switch Status Polling network -> network_api : Request switch status activate network_api network <- network_api : Switch status info deactivate network_api end vcc_unit <- network : Push healthState\n(on change) fsp_unit <- network : Push healthState\n(on change) deactivate network rnote over network AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote end group #PowderBlue Initialize System Parameters lmc -> controller : InitSysParam(json_str) activate controller controller -> subarray : Write sysParam lmc <- controller : Push ResultCode.OK deactivate controller end group #PowderBlue On Command - Provided for transition between AA1 (TDC) and AA2+ interface lmc -> controller : On() activate controller controller -> controller : Set OpState to ON lmc <- controller : Push ResultCode.OK deactivate controller rnote over controller : OpState: ON end @enduml$

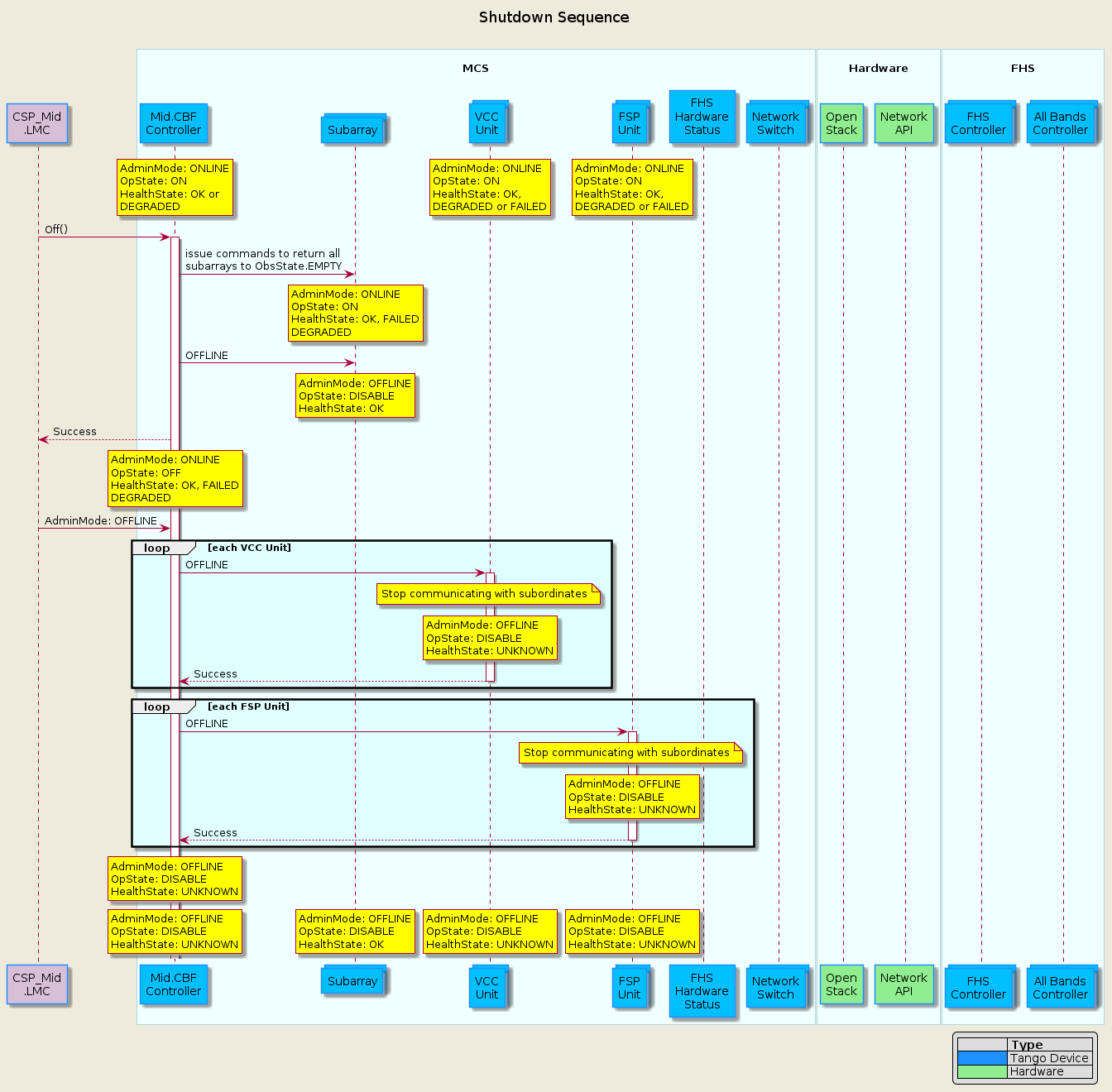

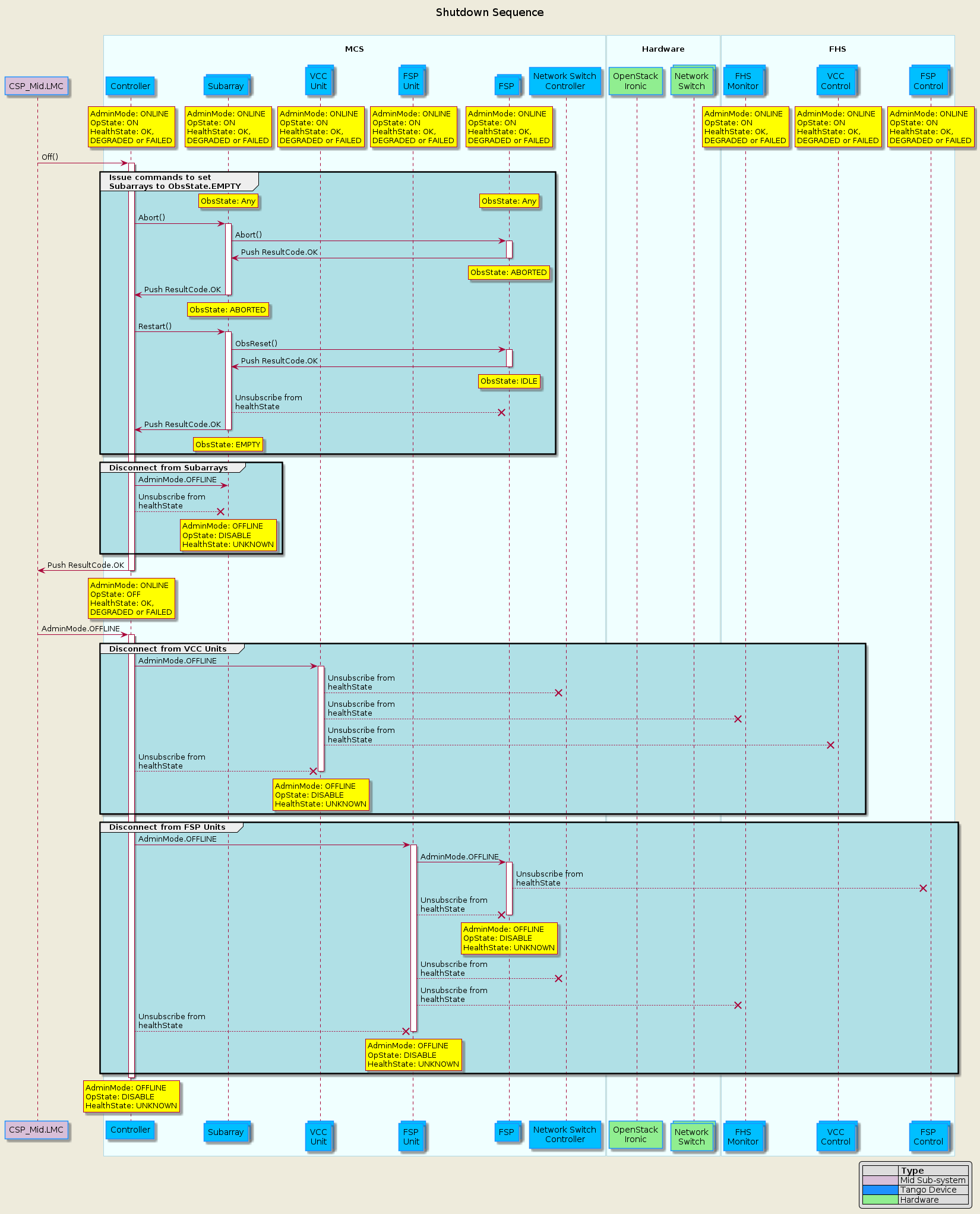

Shutdown Sequence

$@startuml shutdown !include mid-cbf-puml-definitions.txt title Shutdown Sequence\n participant "CSP_Mid.LMC" as lmc #Thistle box "\nMCS\n" participant "Controller" as controller collections "Subarray" as subarray collections "VCC\nUnit" as vcc_unit collections "FSP\nUnit" as fsp_unit collections "FSP" as mcs_fsp participant "Network Switch\nController" as network end box box "\nHardware\n" participant "OpenStack\nIronic" as ironic #LightGreen collections "Network\nSwitch" as network_api #LightGreen end box box "\nFHS\n" collections "FHS\nMonitor" as fhs_ctrl collections "VCC\nControl" as vcc_ctrl collections "FSP\nControl" as fsp_ctrl end box rnote over controller AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote / rnote over subarray AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote / rnote over vcc_unit AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote / rnote over fsp_unit AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote / rnote over mcs_fsp AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote / rnote over fhs_ctrl AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote / rnote over vcc_ctrl AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote / rnote over fsp_ctrl AdminMode: ONLINE OpState: ON HealthState: OK, DEGRADED or FAILED end rnote lmc -> controller : Off() activate controller group #PowderBlue Issue commands to set\nSubarrays to ObsState.EMPTY rnote over subarray : ObsState: Any / rnote over mcs_fsp : ObsState: Any controller -> subarray : Abort() activate subarray subarray -> mcs_fsp : Abort() activate mcs_fsp subarray <- mcs_fsp : Push ResultCode.OK deactivate mcs_fsp rnote over mcs_fsp : ObsState: ABORTED controller <- subarray : Push ResultCode.OK deactivate subarray rnote over subarray : ObsState: ABORTED controller -> subarray : Restart() activate subarray subarray -> mcs_fsp : ObsReset() activate mcs_fsp subarray <- mcs_fsp : Push ResultCode.OK deactivate mcs_fsp rnote over mcs_fsp : ObsState: IDLE subarray --x mcs_fsp : Unsubscribe from\nhealthState controller <- subarray : Push ResultCode.OK deactivate subarray rnote over subarray : ObsState: EMPTY end group #PowderBlue Disconnect from Subarrays controller -> subarray : AdminMode.OFFLINE controller --x subarray : Unsubscribe from\nhealthState rnote over subarray AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote end lmc <- controller : Push ResultCode.OK deactivate controller rnote over controller AdminMode: ONLINE OpState: OFF HealthState: OK, DEGRADED or FAILED end rnote lmc -> controller : AdminMode.OFFLINE activate controller group #PowderBlue Disconnect from VCC Units controller -> vcc_unit : AdminMode.OFFLINE activate vcc_unit vcc_unit --x network : Unsubscribe from\nhealthState vcc_unit --x fhs_ctrl : Unsubscribe from\nhealthState vcc_unit --x vcc_ctrl : Unsubscribe from\nhealthState controller --x vcc_unit : Unsubscribe from\nhealthState deactivate vcc_unit rnote over vcc_unit AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote end group #PowderBlue Disconnect from FSP Units controller -> fsp_unit : AdminMode.OFFLINE activate fsp_unit fsp_unit -> mcs_fsp : AdminMode.OFFLINE activate mcs_fsp mcs_fsp --x fsp_ctrl : Unsubscribe from\nhealthState fsp_unit --x mcs_fsp : Unsubscribe from\nhealthState deactivate mcs_fsp rnote over mcs_fsp AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote fsp_unit --x network : Unsubscribe from\nhealthState fsp_unit --x fhs_ctrl : Unsubscribe from\nhealthState controller --x fsp_unit : Unsubscribe from\nhealthState deactivate fsp_unit rnote over fsp_unit AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote end deactivate controller rnote over controller AdminMode: OFFLINE OpState: DISABLE HealthState: UNKNOWN end rnote @enduml$
