FHS VCC Commands

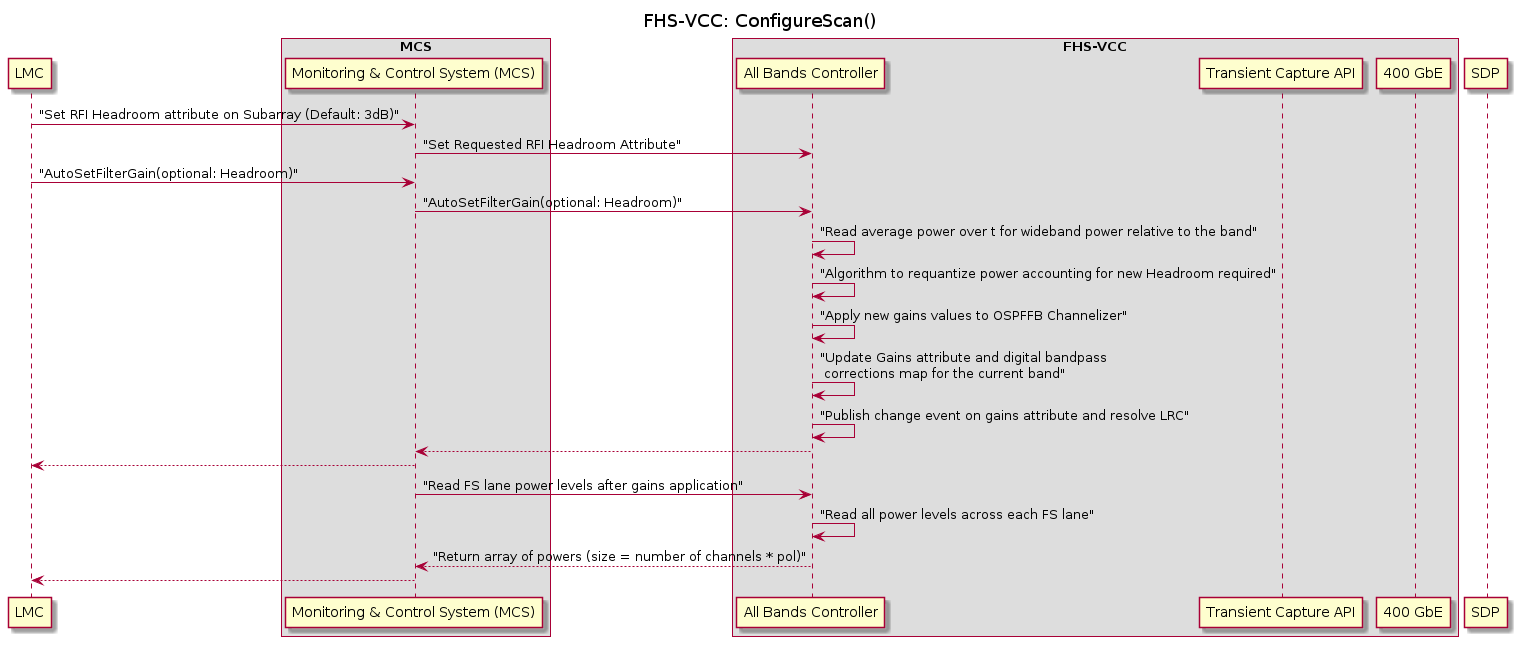

Autoset Gains FHS-VCC

$@startuml fhs_vcc_configure_scan title FHS-VCC: ConfigureScan() participant "LMC" as lmc box "MCS" participant "Monitoring & Control System (MCS)" as mcs end box box "FHS-VCC" participant "All Bands Controller" as allbands participant "Transient Capture API" as api participant "400 GbE" as 400g end box participant "SDP" as sdp lmc -> mcs: "Set RFI Headroom attribute on Subarray (Default: 3dB)" mcs -> allbands: "Set Requested RFI Headroom Attribute" lmc -> mcs: "AutoSetFilterGain(optional: Headroom)" mcs -> allbands: "AutoSetFilterGain(optional: Headroom)" allbands -> allbands: "Read average power over t for wideband power relative to the band" allbands -> allbands: "Algorithm to requantize power accounting for new Headroom required" allbands -> allbands: "Apply new gains values to OSPFFB Channelizer" allbands -> allbands: "Update Gains attribute and digital bandpass \n corrections map for the current band" allbands -> allbands: "Publish change event on gains attribute and resolve LRC" mcs <-- allbands lmc <-- mcs mcs -> allbands: "Read FS lane power levels after gains application" allbands -> allbands: "Read all power levels across each FS lane" mcs <-- allbands: "Return array of powers (size = number of channels * pol)" lmc <-- mcs @enduml$

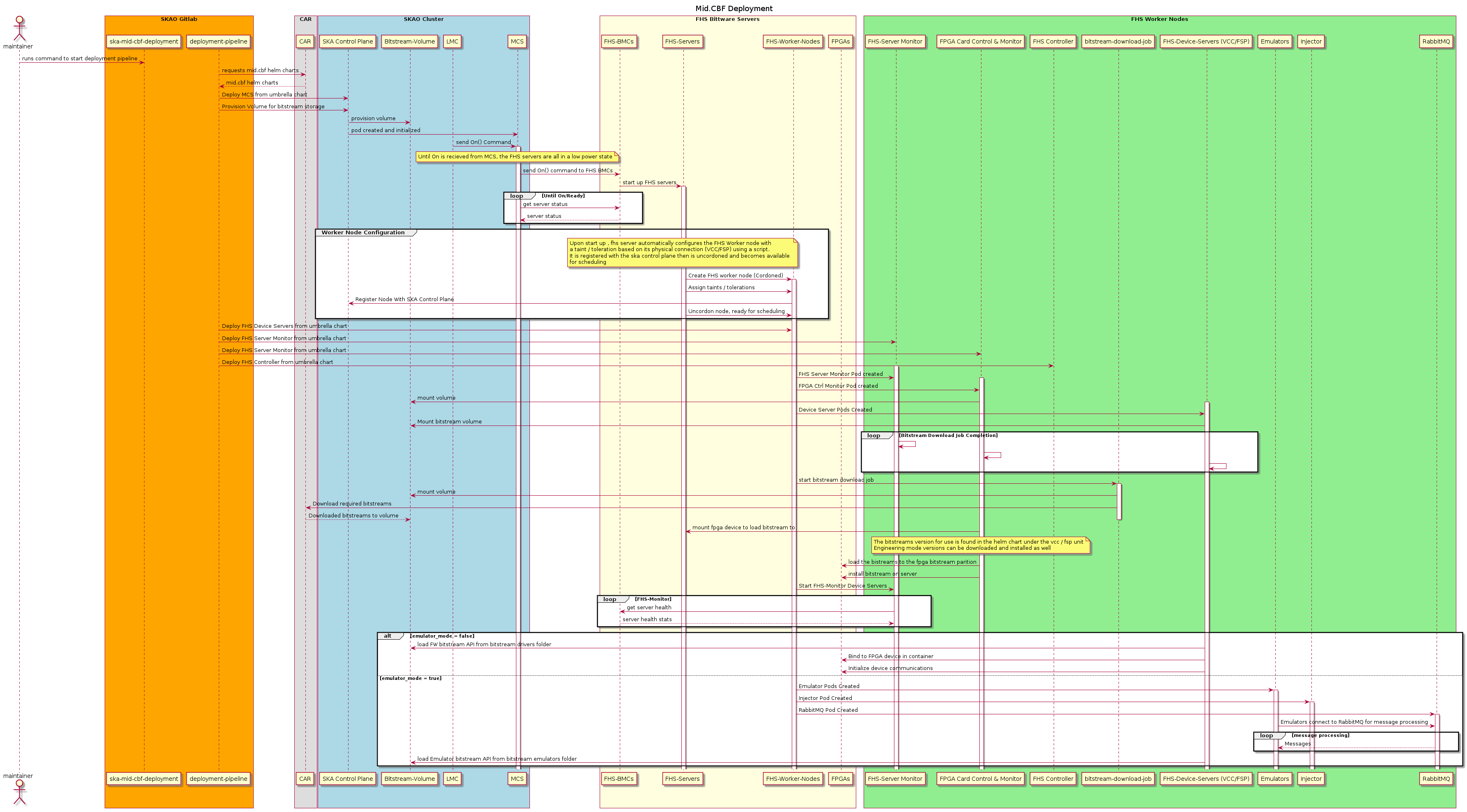

Deployment Sequence

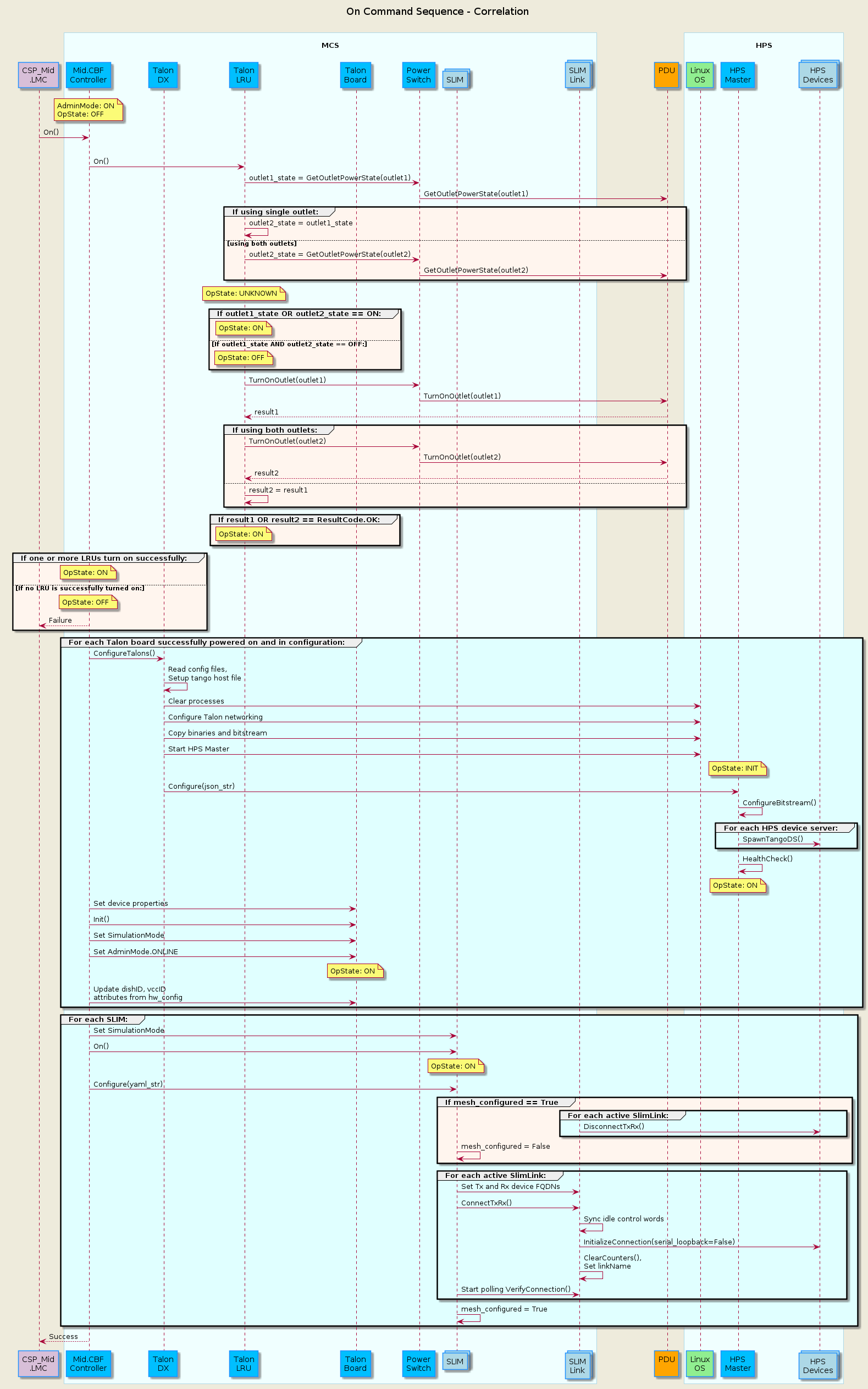

TDC On Command Sequence

$@startuml 'https://plantuml.com/sequence-diagram skinparam backgroundColor #EEEBDC skinparam sequence { ParticipantBorderColor DodgerBlue ParticipantBackgroundColor DeepSkyBlue ActorBorderColor DarkGreen ActorBackgroundColor Green BoxBorderColor LightBlue BoxBackgroundColor #F0FFFF } skinparam collections { BackGroundColor LightBlue BorderColor DodgerBlue } skinparam database { BackgroundColor LightGreen BorderColor DarkGreen } title On Command Sequence - Correlation\n participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nController" as controller participant "Talon\nDX" as tdx participant "Talon\nLRU" as lru participant "Talon\nBoard" as talon_board participant "Power\nSwitch" as ps collections "SLIM" as slim collections "SLIM\nLink" as slimlink end box participant "PDU\n" as pdu #Orange box "\nHPS\n" participant "Linux\nOS" as os #LightGreen participant "HPS\nMaster" as hpsmaster collections "HPS\nDevices" as hpsdevices end box note over controller : AdminMode: ON\nOpState: OFF lmc -> controller : On() group #LightCyan For each Talon LRU in configuration: controller -> lru : On() lru -> ps : outlet1_state = GetOutletPowerState(outlet1) ps -> pdu : GetOutletPowerState(outlet1) group #SeaShell If using single outlet: lru -> lru : outlet2_state = outlet1_state else using both outlets lru -> ps : outlet2_state = GetOutletPowerState(outlet2) ps -> pdu : GetOutletPowerState(outlet2) end group note over lru : OpState: UNKNOWN group #SeaShell If outlet1_state OR outlet2_state == ON: note over lru : OpState: ON else If outlet1_state AND outlet2_state == OFF: note over lru : OpState: OFF end group lru -> ps : TurnOnOutlet(outlet1) ps -> pdu : TurnOnOutlet(outlet1) pdu --> lru : result1 group #SeaShell If using both outlets: lru -> ps : TurnOnOutlet(outlet2) ps -> pdu : TurnOnOutlet(outlet2) pdu --> lru : result2 else lru -> lru : result2 = result1 end group group #SeaShell If result1 OR result2 == ResultCode.OK: note over lru : OpState: ON end group group #SeaShell If one or more LRUs turn on successfully: note over controller : OpState: ON else If no LRU is successfully turned on: note over controller : OpState: OFF lmc <-- controller : Failure end group group #LightCyan For each Talon board successfully powered on and in configuration: controller -> tdx : ConfigureTalons() tdx -> tdx : Read config files,\nSetup tango host file tdx -> os : Clear processes tdx -> os : Configure Talon networking tdx -> os : Copy binaries and bitstream tdx -> os : Start HPS Master note over hpsmaster : OpState: INIT tdx -> hpsmaster : Configure(json_str) hpsmaster -> hpsmaster : ConfigureBitstream() group #LightCyan For each HPS device server: hpsmaster -> hpsdevices : SpawnTangoDS() end group hpsmaster -> hpsmaster : HealthCheck() note over hpsmaster : OpState: ON controller -> talon_board : Set device properties controller -> talon_board : Init() controller -> talon_board : Set SimulationMode controller -> talon_board : Set AdminMode.ONLINE note over talon_board : OpState: ON controller -> talon_board : Update dishID, vccID\nattributes from hw_config end group group #LightCyan For each SLIM: controller -> slim : Set SimulationMode controller -> slim : On() note over slim : OpState: ON controller -> slim : Configure(yaml_str) group #SeaShell If mesh_configured == True group #LightCyan For each active SlimLink: slimlink -> hpsdevices : DisconnectTxRx() end group slim -> slim : mesh_configured = False end group group #LightCyan For each active SlimLink: slim -> slimlink : Set Tx and Rx device FQDNs slim -> slimlink : ConnectTxRx() slimlink -> slimlink : Sync idle control words slimlink -> hpsdevices : InitializeConnection(serial_loopback=False) slimlink -> slimlink : ClearCounters(),\nSet linkName slim -> slimlink : Start polling VerifyConnection() end group slim -> slim : mesh_configured = True end group lmc <-- controller : Success @enduml$

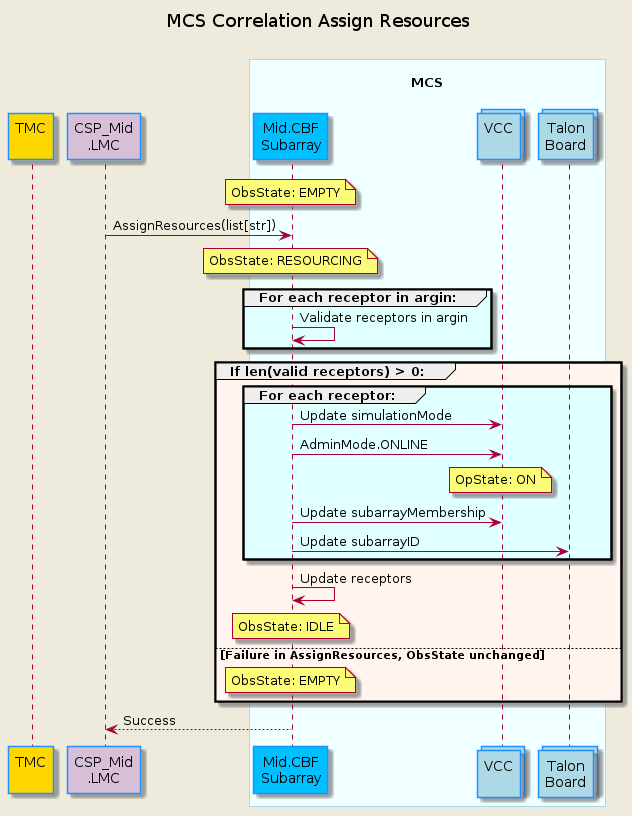

TDC Assign Resources

$@startuml 'https://plantuml.com/sequence-diagram skinparam backgroundColor #EEEBDC skinparam sequence { ParticipantBorderColor DodgerBlue ParticipantBackgroundColor DeepSkyBlue ActorBorderColor DarkGreen ActorBackgroundColor Green BoxBorderColor LightBlue BoxBackgroundColor #F0FFFF } skinparam collections { BackGroundColor LightBlue BorderColor DodgerBlue } title MCS Correlation Assign Resources\n participant "TMC\n" as tmc #Gold participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nSubarray" as subarray collections "VCC\n" as vcc collections "Talon\nBoard" as talon end box note over subarray : ObsState: EMPTY lmc -> subarray : AssignResources(list[str]) note over subarray : ObsState: RESOURCING group #LightCyan For each receptor in argin: subarray -> subarray : Validate receptors in argin end group group #SeaShell If len(valid receptors) > 0: group #LightCyan For each receptor: subarray -> vcc : Update simulationMode subarray -> vcc : AdminMode.ONLINE note over vcc : OpState: ON subarray -> vcc : Update subarrayMembership subarray -> talon : Update subarrayID end group subarray -> subarray : Update receptors note over subarray : ObsState: IDLE else Failure in AssignResources, ObsState unchanged note over subarray : ObsState: EMPTY end group lmc <-- subarray : Success @enduml$

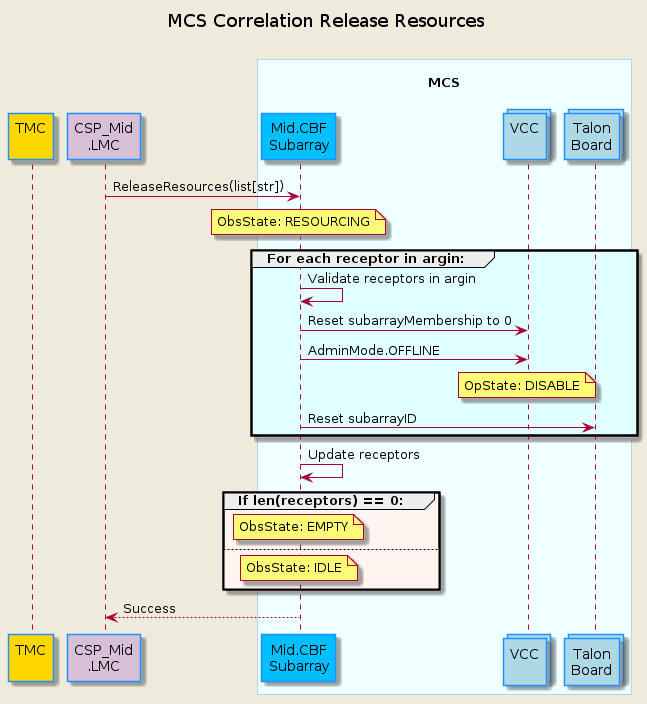

TDC Release Resources

$@startuml 'https://plantuml.com/sequence-diagram skinparam backgroundColor #EEEBDC skinparam sequence { ParticipantBorderColor DodgerBlue ParticipantBackgroundColor DeepSkyBlue ActorBorderColor DarkGreen ActorBackgroundColor Green BoxBorderColor LightBlue BoxBackgroundColor #F0FFFF } skinparam collections { BackGroundColor LightBlue BorderColor DodgerBlue } title MCS Correlation Release Resources\n participant "TMC\n" as tmc #Gold participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nSubarray" as subarray collections "VCC\n" as vcc collections "Talon\nBoard" as talon end box lmc -> subarray : ReleaseResources(list[str]) note over subarray : ObsState: RESOURCING group #LightCyan For each receptor in argin: subarray -> subarray : Validate receptors in argin subarray -> vcc : Reset subarrayMembership to 0 subarray -> vcc : AdminMode.OFFLINE note over vcc : OpState: DISABLE subarray -> talon : Reset subarrayID end group subarray -> subarray : Update receptors group #SeaShell If len(receptors) == 0: note over subarray : ObsState: EMPTY else note over subarray : ObsState: IDLE end group lmc <-- subarray : Success @enduml$
