Mid.CBF AA* Design Work In Progress

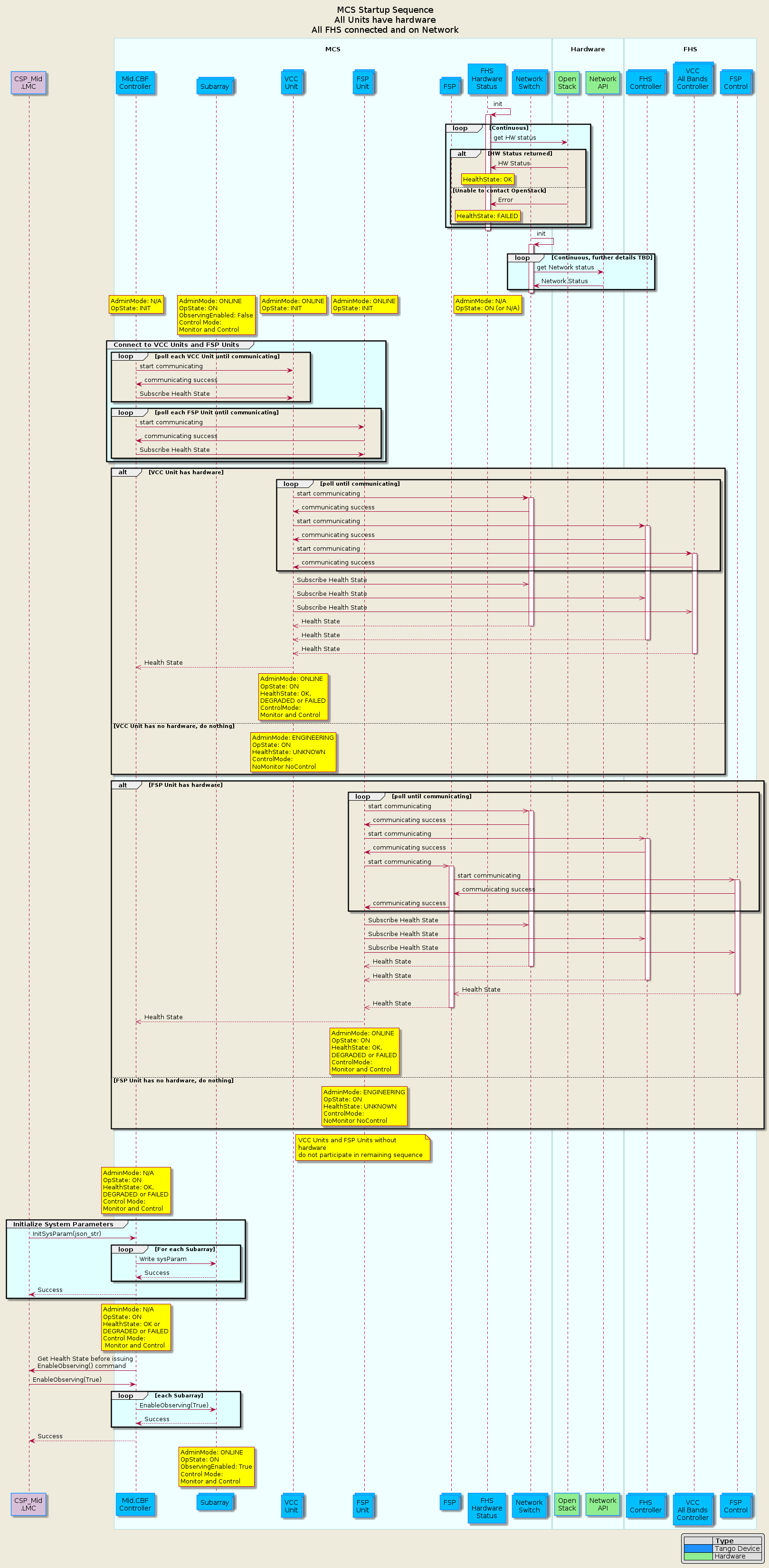

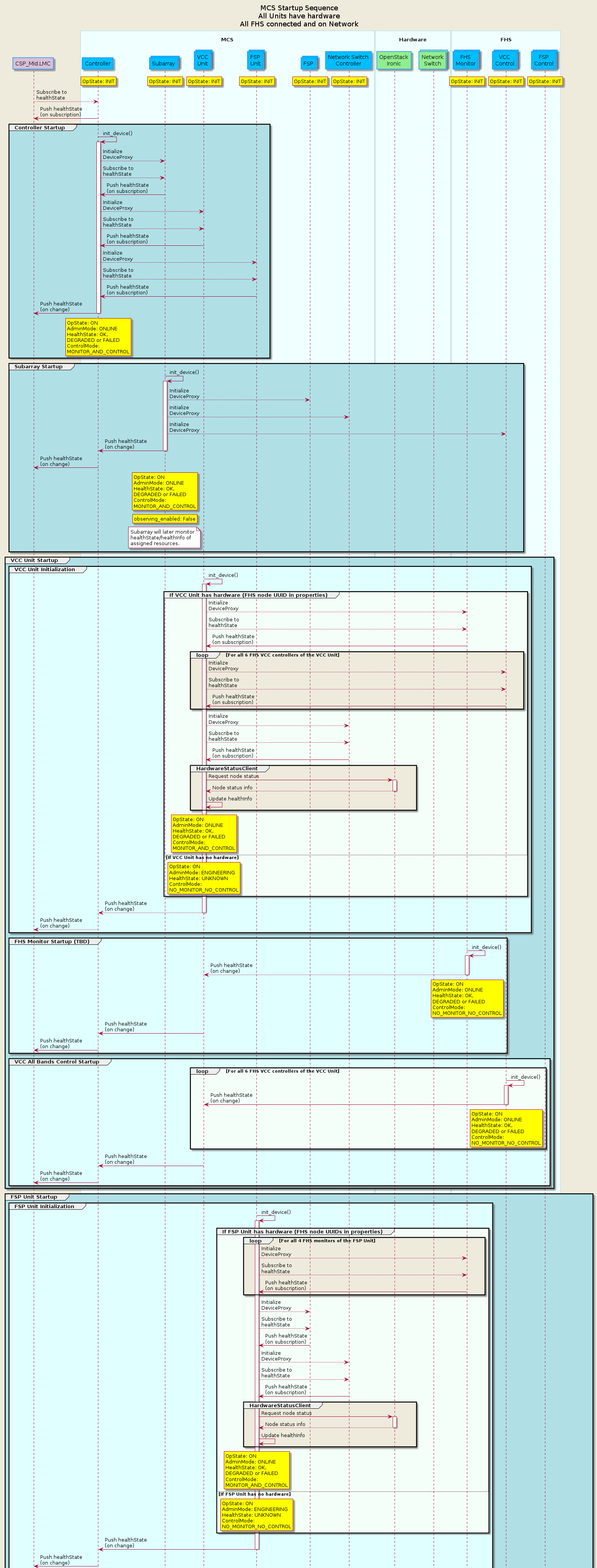

Startup Sequence (TBD)

$@startuml startup !include mid-cbf-puml-definitions.txt title MCS Startup Sequence\nAll Units have hardware\nAll FHS connected and on Network participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nController" as controller collections "Subarray" as subarray collections "VCC\nUnit" as vcc_unit collections "FSP\nUnit" as fsp_unit collections "FSP" as mcs_fsp participant "FHS\nHardware\nStatus" as hw_status collections "Network\nSwitch" as network end box box "\nHardware\n" participant "Open\nStack" as open_stack #LightGreen participant "Network\nAPI" as network_api #LightGreen end box box "\nFHS\n" collections "FHS\nController" as fhs_ctrl collections "VCC\nAll Bands\nController" as vcc_ctrl collections "FSP\nControl" as fsp_ctrl end box hw_status -> hw_status : init activate hw_status loop #LightCyan Continuous hw_status -> open_stack : get HW status alt HW Status returned hw_status <- open_stack : HW Status / rnote over hw_status : HealthState: OK else Unable to contact OpenStack hw_status <- open_stack : Error / rnote over hw_status : HealthState: FAILED end end deactivate hw_status network -> network : init activate network loop #LightCyan Continuous, further details TBD network -> network_api : get Network status network <- network_api : Network Status end deactivate network rnote over controller : AdminMode: N/A\nOpState: INIT / rnote over subarray : AdminMode: ONLINE\nOpState: ON\nObservingEnabled: False\nControl Mode:\nMonitor and Control / rnote over vcc_unit : AdminMode: ONLINE\nOpState: INIT / rnote over fsp_unit : AdminMode: ONLINE\nOpState: INIT / rnote over hw_status : AdminMode: N/A\nOpState: ON (or N/A) group #LightCyan Connect to VCC Units and FSP Units loop poll each VCC Unit until communicating controller -> vcc_unit : start communicating controller <- vcc_unit : communicating success controller -> vcc_unit : Subscribe Health State end loop poll each FSP Unit until communicating controller -> fsp_unit : start communicating controller <- fsp_unit : communicating success controller -> fsp_unit : Subscribe Health State end end alt VCC Unit has hardware loop poll until communicating vcc_unit -> network : start communicating activate network vcc_unit <- network : communicating success vcc_unit -> fhs_ctrl : start communicating activate fhs_ctrl vcc_unit <- fhs_ctrl : communicating success vcc_unit -> vcc_ctrl : start communicating activate vcc_ctrl vcc_unit <- vcc_ctrl : communicating success end vcc_unit ->> network : Subscribe Health State vcc_unit ->> fhs_ctrl : Subscribe Health State vcc_unit ->> vcc_ctrl : Subscribe Health State vcc_unit <<-- network : Health State deactivate network vcc_unit <<-- fhs_ctrl : Health State deactivate fhs_ctrl vcc_unit <<-- vcc_ctrl : Health State deactivate vcc_ctrl vcc_unit -->> controller : Health State rnote over vcc_unit : AdminMode: ONLINE\nOpState: ON\nHealthState: OK, \nDEGRADED or FAILED\nControlMode:\nMonitor and Control else VCC Unit has no hardware, do nothing rnote over vcc_unit : AdminMode: ENGINEERING\nOpState: ON\nHealthState: UNKNOWN\nControlMode:\nNoMonitor NoControl end alt FSP Unit has hardware loop poll until communicating fsp_unit ->> network : start communicating activate network fsp_unit <- network : communicating success fsp_unit ->> fhs_ctrl : start communicating activate fhs_ctrl fsp_unit <- fhs_ctrl : communicating success fsp_unit ->> mcs_fsp : start communicating activate mcs_fsp mcs_fsp ->> fsp_ctrl : start communicating activate fsp_ctrl mcs_fsp <- fsp_ctrl : communicating success fsp_unit <- mcs_fsp : communicating success end fsp_unit ->> network : Subscribe Health State fsp_unit ->> fhs_ctrl : Subscribe Health State fsp_unit ->> fsp_ctrl : Subscribe Health State fsp_unit <<-- network : Health State deactivate network fsp_unit <<-- fhs_ctrl : Health State deactivate fhs_ctrl mcs_fsp <<-- fsp_ctrl : Health State deactivate fsp_ctrl fsp_unit <<-- mcs_fsp : Health State deactivate mcs_fsp fsp_unit -->> controller : Health State rnote over fsp_unit : AdminMode: ONLINE\nOpState: ON\nHealthState: OK, \nDEGRADED or FAILED\nControlMode:\nMonitor and Control else FSP Unit has no hardware, do nothing rnote over fsp_unit : AdminMode: ENGINEERING\nOpState: ON\nHealthState: UNKNOWN\nControlMode:\nNoMonitor NoControl end note right of vcc_unit : VCC Units and FSP Units without\nhardware\ndo not participate in remaining sequence rnote over controller : AdminMode: N/A\nOpState: ON\nHealthState: OK, \nDEGRADED or FAILED\nControl Mode:\nMonitor and Control group #LightCyan Initialize System Parameters lmc -> controller : InitSysParam(json_str) loop #LightCyan For each Subarray controller -> subarray : Write sysParam controller <-- subarray : Success end lmc <-- controller : Success end rnote over controller : AdminMode: N/A\nOpState: ON\nHealthState: OK or\nDEGRADED or FAILED\nControl Mode:\n Monitor and Control lmc <- controller : Get Health State before issuing\nEnableObserving() command lmc -> controller : EnableObserving(True) loop #LightCyan each Subarray controller -> subarray : EnableObserving(True) controller <-- subarray : Success end loop lmc <-- controller : Success rnote over subarray : AdminMode: ONLINE\nOpState: ON\nObservingEnabled: True\nControl Mode:\nMonitor and Control @enduml$

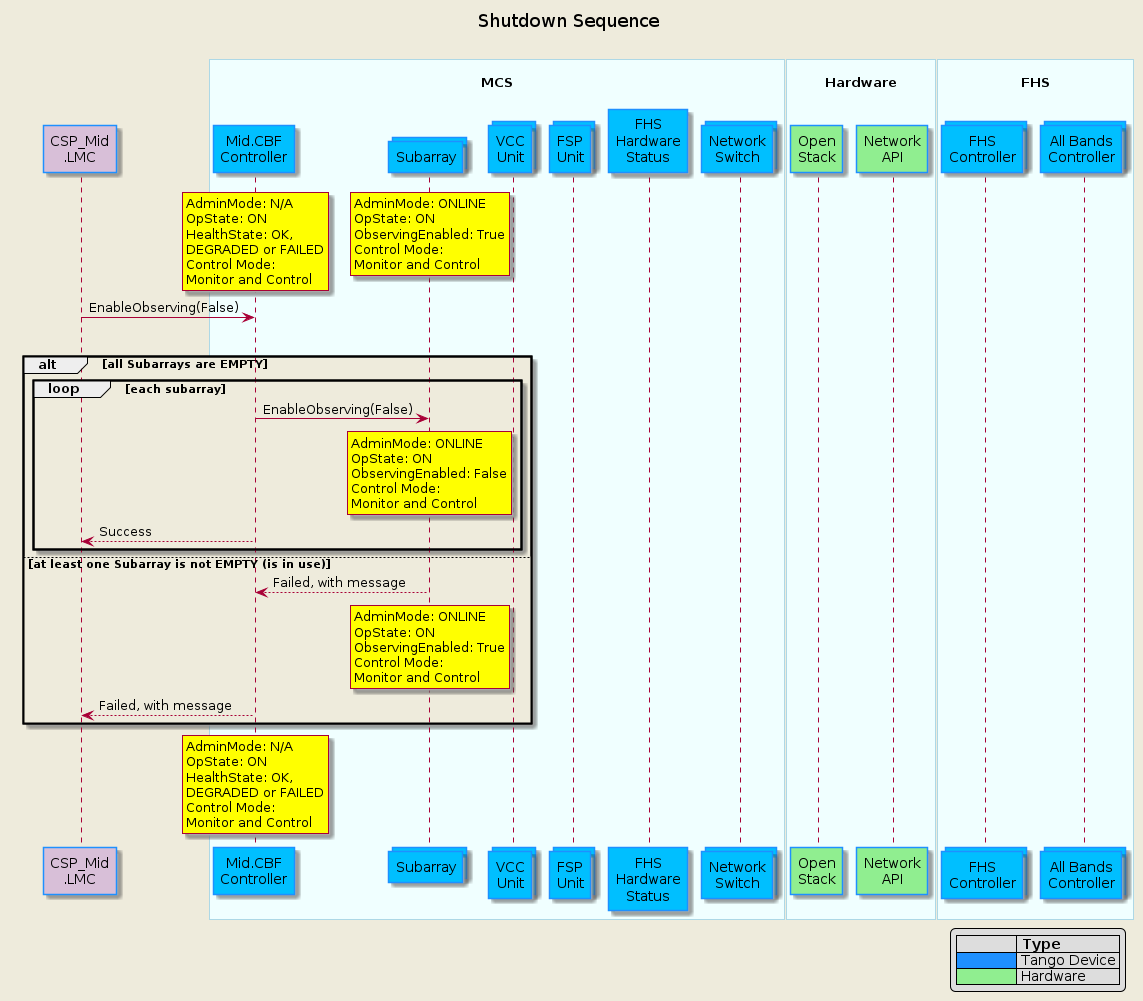

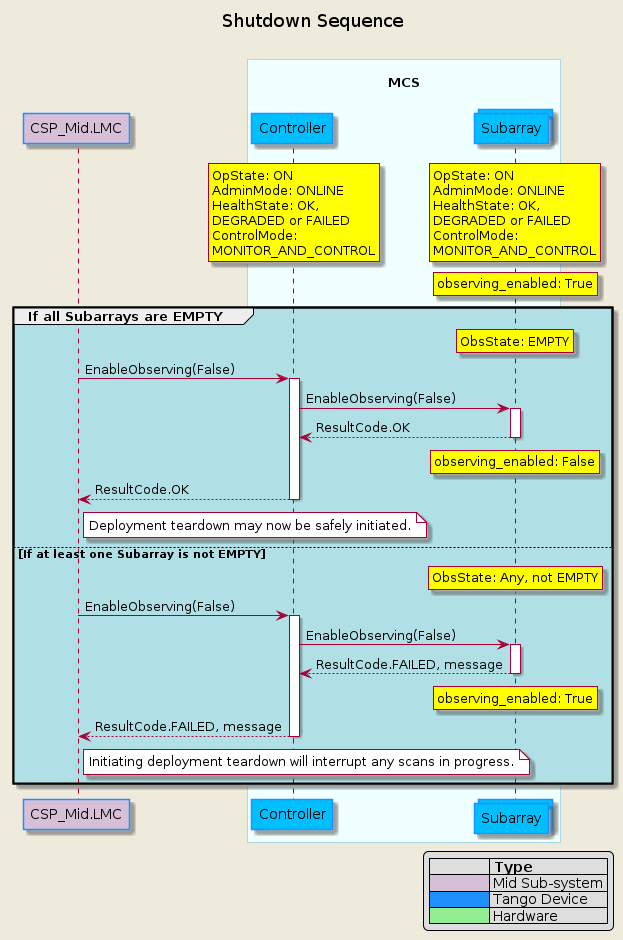

Shutdown Sequence (TBD)

$@startuml shutdown !include mid-cbf-puml-definitions.txt title Shutdown Sequence\n participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nController" as controller collections "Subarray" as subarray collections "VCC\nUnit" as vcc_unit collections "FSP\nUnit" as fsp_unit participant "FHS\nHardware\nStatus" as hw_status collections "Network\nSwitch" as network end box box "\nHardware\n" participant "Open\nStack" as open_stack #LightGreen participant "Network\nAPI" as network_api #LightGreen end box box "\nFHS\n" collections "FHS\nController" as fhs_ctrl collections "All Bands\nController" as ab_ctrl end box rnote over controller : AdminMode: N/A\nOpState: ON\nHealthState: OK, \nDEGRADED or FAILED\nControl Mode:\nMonitor and Control / rnote over subarray : AdminMode: ONLINE\nOpState: ON\nObservingEnabled: True\nControl Mode:\nMonitor and Control lmc -> controller : EnableObserving(False) alt All Subarrays are alt all Subarrays are EMPTY loop each subarray controller -> subarray : EnableObserving(False) / rnote over subarray : AdminMode: ONLINE\nOpState: ON\nObservingEnabled: False\nControl Mode:\nMonitor and Control lmc <-- controller : Success end else at least one Subarray is not EMPTY (is in use) controller <-- subarray : Failed, with message / rnote over subarray : AdminMode: ONLINE\nOpState: ON\nObservingEnabled: True\nControl Mode:\nMonitor and Control lmc <-- controller : Failed, with message end rnote over controller : AdminMode: N/A\nOpState: ON\nHealthState: OK, \nDEGRADED or FAILED\nControl Mode:\nMonitor and Control @enduml$

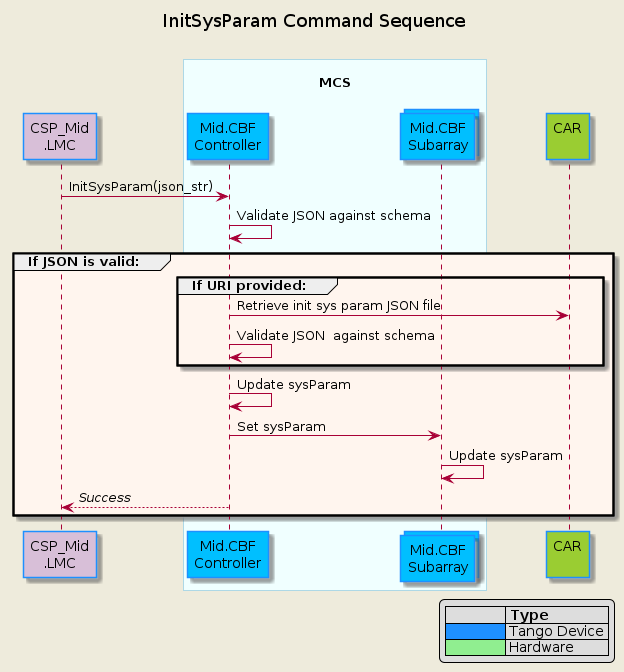

Setting System Parameters

$@startuml init_sys_param !include mid-cbf-puml-definitions.txt title InitSysParam Command Sequence\n participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nController" as controller collections "Mid.CBF\nSubarray" as subarray end box participant "CAR\n" as car #YellowGreen lmc -> controller : InitSysParam(json_str) controller -> controller : Validate JSON against schema group #SeaShell If JSON is valid: group #SeaShell If URI provided: controller -> car : Retrieve init sys param JSON file controller -> controller : Validate JSON against schema end group controller -> controller : Update sysParam controller -> subarray : Set sysParam subarray -> subarray : Update sysParam lmc <-- controller : //Success// end group @enduml$

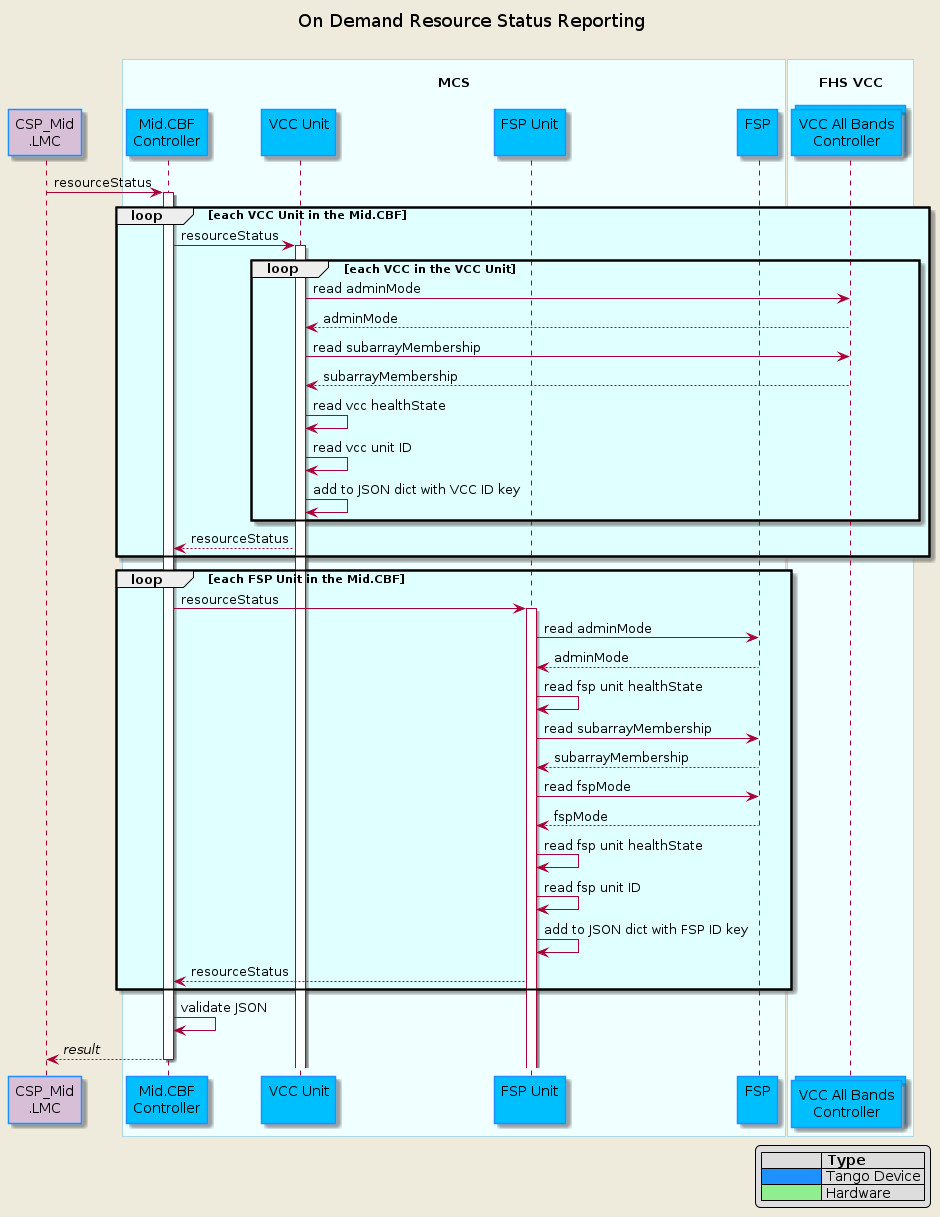

Resource Status Reporting

$@startuml resource-status !include mid-cbf-puml-definitions.txt title On Demand Resource Status Reporting\n ' ====================================== participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nController" as controller participant "VCC Unit\n" as vcc_unit participant "FSP Unit\n" as fsp_unit participant "FSP\n" as fsp end box box "\nFHS VCC" collections "VCC All Bands\nController" as fhs_vcc end box ' ====================================== ' Request resource status report lmc -> controller ++ : resourceStatus ' Controller loops through all VCC Units loop #LightCyan each VCC Unit in the Mid.CBF controller -> vcc_unit ++ : resourceStatus loop #LightCyan each VCC in the VCC Unit vcc_unit -> fhs_vcc : read adminMode fhs_vcc --> vcc_unit : adminMode vcc_unit -> fhs_vcc : read subarrayMembership vcc_unit <-- fhs_vcc : subarrayMembership vcc_unit -> vcc_unit : read vcc healthState vcc_unit -> vcc_unit : read vcc unit ID vcc_unit -> vcc_unit : add to JSON dict with VCC ID key end loop controller <-- vcc_unit : resourceStatus end loop loop #LightCyan each FSP Unit in the Mid.CBF controller -> fsp_unit ++ : resourceStatus fsp_unit -> fsp : read adminMode fsp_unit <-- fsp : adminMode fsp_unit -> fsp_unit : read fsp unit healthState fsp_unit -> fsp : read subarrayMembership fsp_unit <-- fsp : subarrayMembership fsp_unit -> fsp : read fspMode fsp_unit <-- fsp : fspMode fsp_unit -> fsp_unit : read fsp unit healthState fsp_unit -> fsp_unit : read fsp unit ID fsp_unit -> fsp_unit : add to JSON dict with FSP ID key controller <-- fsp_unit : resourceStatus end loop controller -> controller : validate JSON lmc <-- controller -- : //result// @enduml$

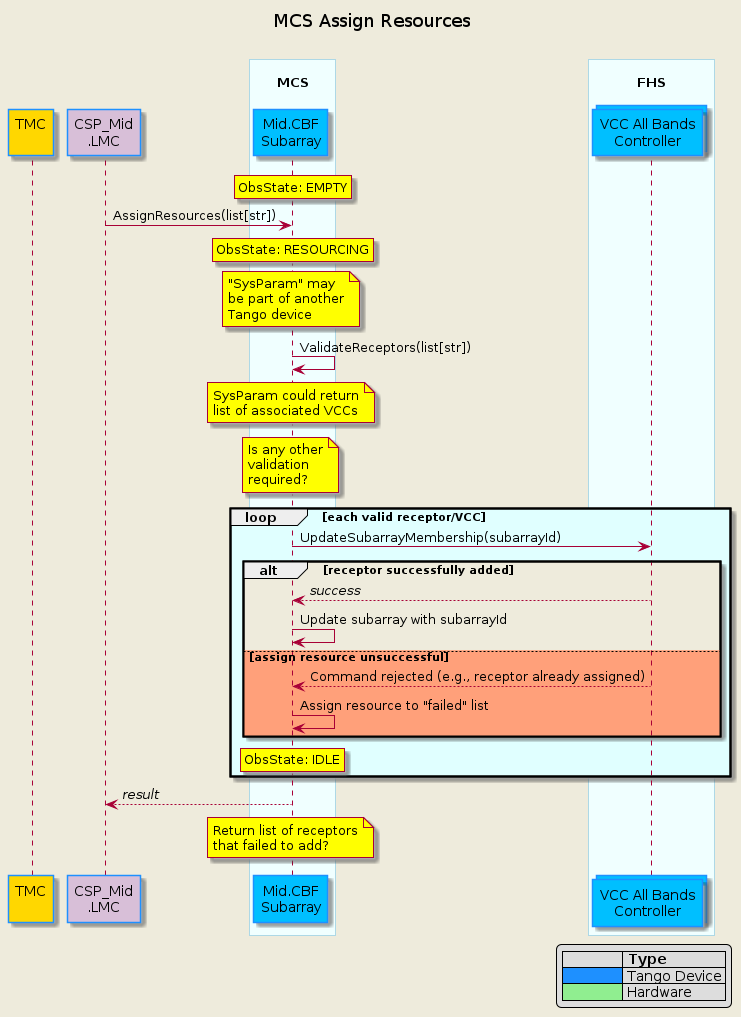

Assign Resources

$@startuml assign-resources !include mid-cbf-puml-definitions.txt title MCS Assign Resources\n participant "TMC\n" as tmc #Gold participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nSubarray" as subarray end box box "\nFHS" collections "VCC All Bands\nController" as fhs_vcc end box rnote over subarray : ObsState: EMPTY lmc -> subarray : AssignResources(list[str]) rnote over subarray : ObsState: RESOURCING note over subarray : "SysParam" may\nbe part of another\nTango device subarray -> subarray : ValidateReceptors(list[str]) note over subarray #yellow : SysParam could return\nlist of associated VCCs note over subarray #yellow : Is any other\nvalidation\nrequired? loop #LightCyan each valid receptor/VCC subarray -> fhs_vcc : UpdateSubarrayMembership(subarrayId) alt receptor successfully added subarray <-- fhs_vcc : //success// subarray -> subarray : Update subarray with subarrayId else #LightSalmon assign resource unsuccessful subarray <-- fhs_vcc : Command rejected (e.g., receptor already assigned) subarray -> subarray : Assign resource to "failed" list end alt rnote over subarray : ObsState: IDLE end loop lmc <-- subarray : //result// note over subarray #yellow : Return list of receptors\nthat failed to add? @enduml$

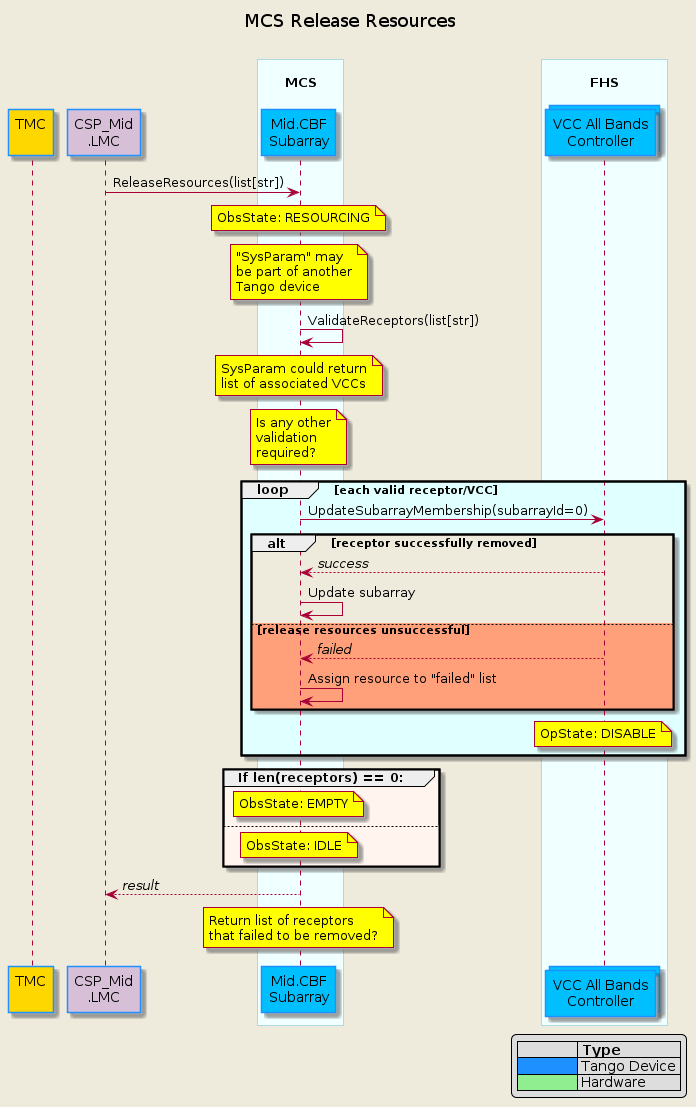

Release Resources

$@startuml release-resources !include mid-cbf-puml-definitions.txt title MCS Release Resources\n participant "TMC\n" as tmc #Gold participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nSubarray" as subarray end box box "\nFHS" collections "VCC All Bands\nController" as fhs_vcc end box lmc -> subarray : ReleaseResources(list[str]) note over subarray : ObsState: RESOURCING note over subarray : "SysParam" may\nbe part of another\nTango device subarray -> subarray : ValidateReceptors(list[str]) note over subarray #yellow : SysParam could return\nlist of associated VCCs note over subarray #yellow : Is any other\nvalidation\nrequired? loop #LightCyan each valid receptor/VCC subarray -> fhs_vcc : UpdateSubarrayMembership(subarrayId=0) alt receptor successfully removed subarray <-- fhs_vcc : //success// subarray -> subarray : Update subarray else #LightSalmon release resources unsuccessful subarray <-- fhs_vcc : //failed// subarray -> subarray : Assign resource to "failed" list end alt note over fhs_vcc : OpState: DISABLE end loop group #SeaShell If len(receptors) == 0: note over subarray : ObsState: EMPTY else note over subarray : ObsState: IDLE end group lmc <-- subarray : //result// note over subarray #yellow : Return list of receptors\nthat failed to be removed? @enduml$

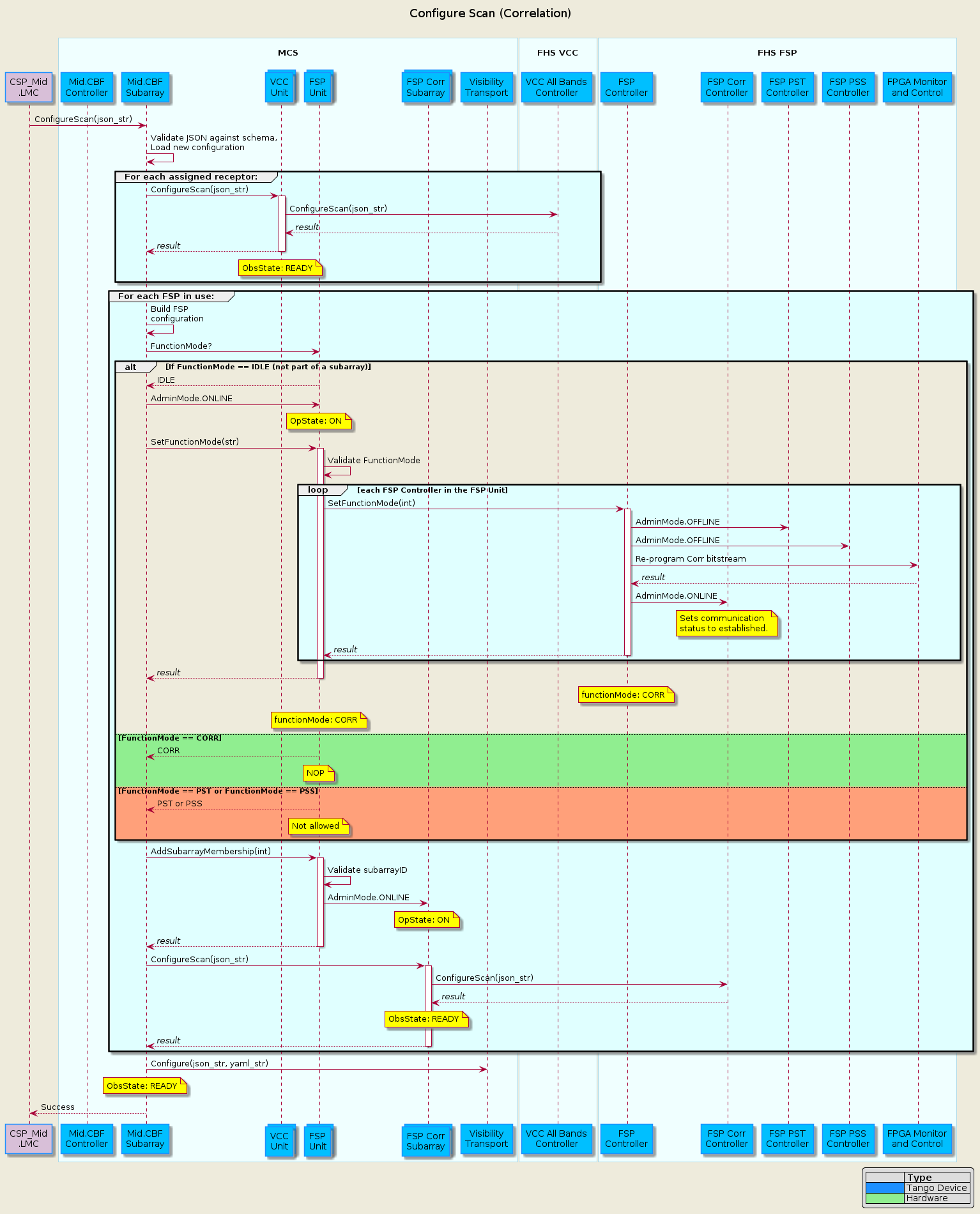

Configure Scan

$@startuml configure scan !include mid-cbf-puml-definitions.txt title Configure Scan (Correlation)\n ' participant "TMC\n" as tmc #Gold participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nController" as controller participant "Mid.CBF\nSubarray" as subarray collections "VCC\nUnit" as vcc collections "FSP\nUnit" as fsp_unit collections "FSP Corr\nSubarray" as fspcorr participant "Visibility\nTransport" as vis_trans end box box "\nFHS VCC\n" participant "VCC All Bands\nController" as vcc_cont end box box "\nFHS FSP\n" participant "FSP\nController" as fsp_cont participant "FSP Corr\nController" as fsp_corr_ctrl participant "FSP PST\nController" as fsp_pst_ctrl participant "FSP PSS\nController" as fsp_pss_ctrl participant "FPGA Monitor\nand Control" as fpga end box lmc -> subarray : ConfigureScan(json_str) subarray -> subarray : Validate JSON against schema,\nLoad new configuration ' group #LightCyan For each FSP: ' subarray -> fsp : RemoveSubarrayMembership ' group #SeaShell If len(subarrayMembership) == 0: ' fsp -> fspcorr : AdminMode.OFFLINE ' note over fspcorr : OpState: DISABLE ' fsp -> fsp_cont : Set function mode to IDLE ' note over fsp_cont : functionMode: IDLE ' note over fsp : functionMode: IDLE ' subarray -> fsp : AdminMode.OFFLINE ' note over fsp : OpState: DISABLE ' end group ' end group ' group #LemonChiffon Delay model subscription point ' subarray -> tmc : Unsubscribe all events ' end group ' subarray -> subarray : Clear old configuration ' group #LemonChiffon Delay model subscription point ' subarray -> tmc : Subscribe delay model ' end group group #LightCyan For each assigned receptor: ' subarray -> vcc : ConfigureBand(json_str) ' vcc -> vcc_cont : ConfigureBand(int) subarray -> vcc ++ : ConfigureScan(json_str) vcc -> vcc_cont : ConfigureScan(json_str) vcc <-- vcc_cont : //result// subarray <-- vcc -- : //result// note over vcc : ObsState: READY end group group #LightCyan For each FSP in use: subarray -> subarray : Build FSP\nconfiguration subarray -> fsp_unit : FunctionMode? alt If FunctionMode == IDLE (not part of a subarray) subarray <-- fsp_unit : IDLE subarray -> fsp_unit : AdminMode.ONLINE note over fsp_unit : OpState: ON subarray -> fsp_unit ++ : SetFunctionMode(str) fsp_unit -> fsp_unit : Validate FunctionMode loop #LightCyan each FSP Controller in the FSP Unit fsp_unit -> fsp_cont ++ : SetFunctionMode(int) fsp_cont -> fsp_pst_ctrl : AdminMode.OFFLINE fsp_cont -> fsp_pss_ctrl : AdminMode.OFFLINE fsp_cont -> fpga : Re-program Corr bitstream fsp_cont <-- fpga : //result// fsp_cont -> fsp_corr_ctrl : AdminMode.ONLINE note over fsp_corr_ctrl: Sets communication\nstatus to established. fsp_unit <-- fsp_cont -- : //result// end loop subarray <-- fsp_unit -- : //result// note over fsp_cont : functionMode: CORR note over fsp_unit : functionMode: CORR else #LightGreen FunctionMode == CORR subarray <-- fsp_unit : CORR note over fsp_unit: NOP else #LightSalmon FunctionMode == PST or FunctionMode == PSS subarray <-- fsp_unit : PST or PSS note over fsp_unit: Not allowed end alt subarray -> fsp_unit ++ : AddSubarrayMembership(int) fsp_unit -> fsp_unit : Validate subarrayID fsp_unit -> fspcorr : AdminMode.ONLINE note over fspcorr : OpState: ON subarray <-- fsp_unit -- : //result// subarray -> fspcorr ++ : ConfigureScan(json_str) ' fspcorr -> fspcorr : Reset old configuration,\nRelease all VCCs,\nLoad FSP configuration,\nAssign new VCCs,\nBuild HPS FSP CORR configuration fspcorr -> fsp_corr_ctrl : ConfigureScan(json_str) fspcorr <-- fsp_corr_ctrl : //result// note over fspcorr : ObsState: READY subarray <-- fspcorr -- : //result// end group subarray -> vis_trans : Configure(json_str, yaml_str) note over subarray : ObsState: READY lmc <-- subarray : Success @enduml$

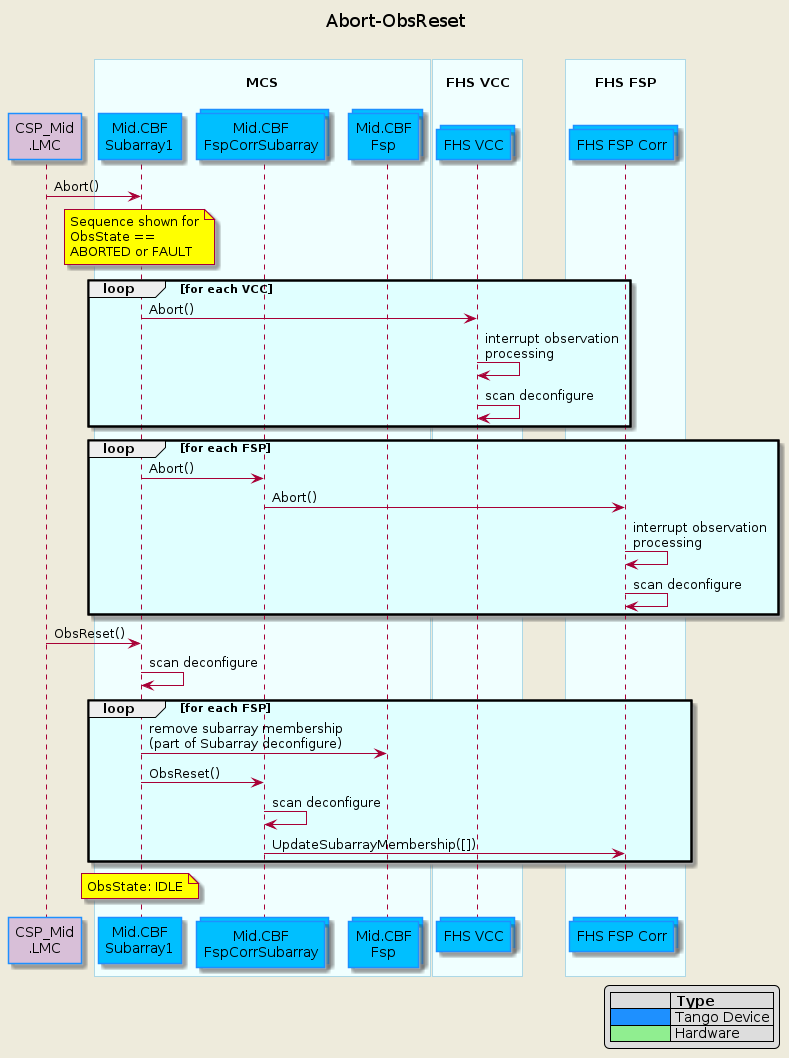

Abort

DRAFT only. Temporary text will move to MCS DDD when design confirmed. On an Abort command to FHS FSP, the FHS FSP would both stop any processing and deconfigure the FHS FSP.

On an ObsReset, MCS removes the subarray membership to the FSPs.

$@startuml sync-fsp-output !include mid-cbf-puml-definitions.txt title Abort-ObsReset\n ' ====================================== participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nSubarray1" as subarray collections "Mid.CBF\nFspCorrSubarray" as corr_subarray collections "Mid.CBF\nFsp" as fsp end box box "\nFHS VCC" collections "FHS VCC" as fhs_vcc end box box "\nFHS FSP" collections "FHS FSP Corr" as fhs_fsp end box ' ====================================== lmc -> subarray : Abort() note over subarray : Sequence shown for\nObsState ==\nABORTED or FAULT loop #LightCyan for each VCC subarray -> fhs_vcc : Abort() fhs_vcc -> fhs_vcc : interrupt observation\nprocessing fhs_vcc -> fhs_vcc : scan deconfigure end loop #LightCyan for each FSP subarray -> corr_subarray : Abort() corr_subarray -> fhs_fsp : Abort() fhs_fsp -> fhs_fsp : interrupt observation\nprocessing fhs_fsp -> fhs_fsp : scan deconfigure end lmc -> subarray : ObsReset() subarray -> subarray : scan deconfigure loop #LightCyan for each FSP subarray -> fsp : remove subarray membership\n(part of Subarray deconfigure) subarray -> corr_subarray : ObsReset() corr_subarray -> corr_subarray : scan deconfigure corr_subarray -> fhs_fsp : UpdateSubarrayMembership([]) end note over subarray : ObsState: IDLE @enduml$

Start Scan

Engineering Mode

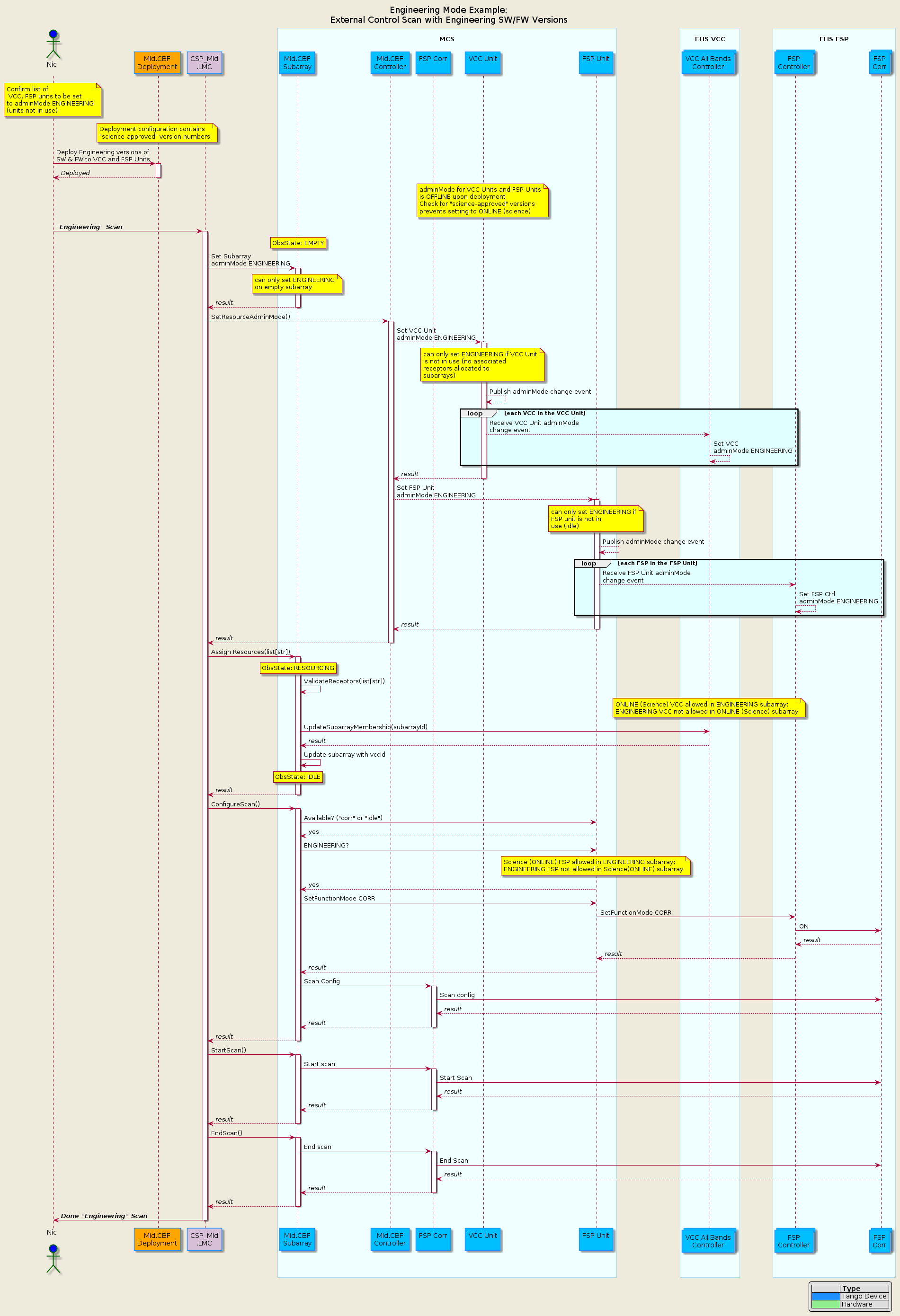

Engineering Mode Example

$@startuml engineering-mode !include mid-cbf-puml-definitions.txt title Engineering Mode Example:\nExternal Control Scan with Engineering SW/FW Versions ' ====================================== actor "Nic\n" as nic #Blue participant "Mid.CBF\nDeployment" as deploy #Orange participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nSubarray" as subarray participant "Mid.CBF\nController" as controller participant "FSP Corr\n" as fsp_corr participant "VCC Unit\n" as vcc_unit participant "FSP Unit\n" as fsp_unit end box box "\nFHS VCC" collections "VCC All Bands\nController" as fhs_vcc end box box "\nFHS FSP" collections "FSP\nController" as fhs_fsp collections "FSP\nCorr" as fhs_corr end box ' ====================================== note over nic: Confirm list of\n VCC, FSP units to be set\nto adminMode ENGINEERING\n(units not in use) note over deploy: Deployment configuration contains\n"science-approved" version numbers nic -> deploy ++ : Deploy Engineering versions of\nSW & FW to VCC and FSP Units nic <-- deploy -- : //Deployed// note over vcc_unit : adminMode for VCC Units and FSP Units\nis OFFLINE upon deployment\nCheck for "science-approved" versions\nprevents setting to ONLINE (science) nic -> lmc ++ : **//"Engineering" Scan//** rnote over subarray : ObsState: EMPTY lmc -> subarray ++ : Set Subarray\nadminMode ENGINEERING note over subarray : can only set ENGINEERING\non empty subarray lmc <-- subarray -- : //result// ' Set VCC Unit to Engineering Mode lmc --> controller ++ : SetResourceAdminMode() controller --> vcc_unit ++ : Set VCC Unit \nadminMode ENGINEERING note over vcc_unit: can only set ENGINEERING if VCC Unit\nis not in use (no associated\nreceptors allocated to\nsubarrays) vcc_unit --> vcc_unit : Publish adminMode change event loop #LightCyan each VCC in the VCC Unit vcc_unit --> fhs_vcc : Receive VCC Unit adminMode\nchange event fhs_vcc --> fhs_vcc : Set VCC \nadminMode ENGINEERING end loop controller <-- vcc_unit -- : //result// 'Set FSP Unit to Engineering Mode controller --> fsp_unit ++ : Set FSP Unit \nadminMode ENGINEERING note over fsp_unit : can only set ENGINEERING if\nFSP unit is not in\nuse (idle) fsp_unit --> fsp_unit : Publish adminMode change event loop #LightCyan each FSP in the FSP Unit fsp_unit --> fhs_fsp : Receive FSP Unit adminMode\nchange event fhs_fsp --> fhs_fsp : Set FSP Ctrl \nadminMode ENGINEERING end controller <-- fsp_unit -- : //result// lmc <-- controller -- : //result// 'Assign Resources lmc -> subarray ++ : Assign Resources(list[str]) rnote over subarray : ObsState: RESOURCING subarray -> subarray : ValidateReceptors(list[str]) note over fhs_vcc: ONLINE (Science) VCC allowed in ENGINEERING subarray;\nENGINEERING VCC not allowed in ONLINE (Science) subarray subarray -> fhs_vcc : UpdateSubarrayMembership(subarrayId) subarray <-- fhs_vcc : //result// subarray -> subarray : Update subarray with vccId rnote over subarray : ObsState: IDLE lmc <-- subarray -- : //result// 'Configure Scan lmc -> subarray ++ : ConfigureScan() subarray -> fsp_unit : Available? ("corr" or "idle") subarray <-- fsp_unit : yes subarray -> fsp_unit : ENGINEERING? note over fsp_unit: Science (ONLINE) FSP allowed in ENGINEERING subarray;\nENGINEERING FSP not allowed in Science(ONLINE) subarray subarray <-- fsp_unit : yes subarray -> fsp_unit : SetFunctionMode CORR fsp_unit -> fhs_fsp : SetFunctionMode CORR fhs_fsp -> fhs_corr : ON fhs_fsp <-- fhs_corr ://result// fsp_unit <-- fhs_fsp ://result// subarray <-- fsp_unit ://result// subarray -> fsp_corr ++ : Scan Config fsp_corr -> fhs_corr : Scan config fsp_corr <-- fhs_corr : //result// subarray <-- fsp_corr -- : //result// lmc <-- subarray -- : //result// 'Start Scan lmc -> subarray ++ : StartScan() subarray -> fsp_corr ++ : Start scan fsp_corr -> fhs_corr: Start Scan fsp_corr <-- fhs_corr: //result// subarray <-- fsp_corr -- : //result// lmc <-- subarray -- : //result// 'End Scan lmc -> subarray ++ : EndScan() subarray -> fsp_corr ++ : End scan fsp_corr -> fhs_corr : End Scan fsp_corr <-- fhs_corr : //result// subarray <-- fsp_corr -- : //result// lmc <-- subarray -- : //result// nic <- lmc -- : **//Done "Engineering" Scan//** @enduml$

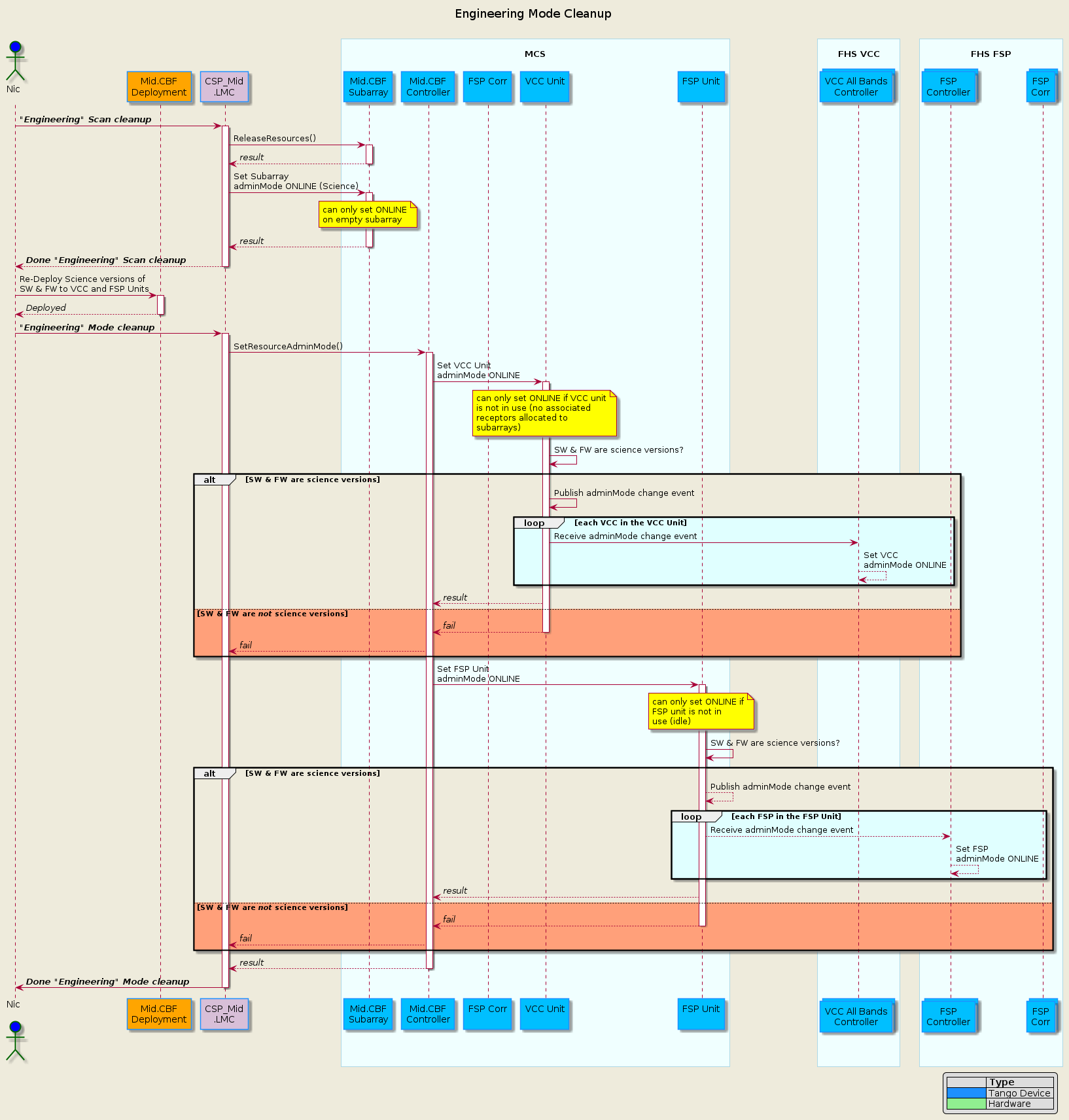

Engineering Mode Cleanup

$@startuml engineering-mode !include mid-cbf-puml-definitions.txt title Engineering Mode Cleanup\n ' ====================================== actor "Nic\n" as nic #Blue participant "Mid.CBF\nDeployment" as deploy #Orange participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nSubarray" as subarray participant "Mid.CBF\nController" as controller participant "FSP Corr\n" as fsp_corr participant "VCC Unit\n" as vcc_unit participant "FSP Unit\n" as fsp_unit end box box "\nFHS VCC" collections "VCC All Bands\nController" as fhs_vcc end box box "\nFHS FSP" collections "FSP\nController" as fhs_fsp collections "FSP\nCorr" as fhs_corr end box ' ====================================== nic -> lmc ++ : **//"Engineering" Scan cleanup//** 'Release Resources lmc -> subarray ++ : ReleaseResources() lmc <-- subarray -- : //result// ' Set Subarray to Science Mode lmc -> subarray ++ : Set Subarray \nadminMode ONLINE (Science) note over subarray : can only set ONLINE\non empty subarray lmc <-- subarray -- : //result// nic <-- lmc -- : **//Done "Engineering" Scan cleanup//** ' Re-deploy Science version of SW & FW nic -> deploy ++ : Re-Deploy Science versions of\nSW & FW to VCC and FSP Units nic <-- deploy -- : //Deployed// nic -> lmc ++ : **//"Engineering" Mode cleanup//** ' Set VCC Unit to Science Mode lmc -> controller ++ : SetResourceAdminMode() controller -> vcc_unit ++ : Set VCC Unit \nadminMode ONLINE note over vcc_unit: can only set ONLINE if VCC unit\nis not in use (no associated\nreceptors allocated to\nsubarrays) vcc_unit -> vcc_unit : SW & FW are science versions? alt SW & FW are science versions vcc_unit -> vcc_unit : Publish adminMode change event loop #LightCyan each VCC in the VCC Unit vcc_unit -> fhs_vcc : Receive adminMode change event fhs_vcc --> fhs_vcc : Set VCC \nadminMode ONLINE end loop controller <-- vcc_unit : //result// else #LightSalmon SW & FW are //not// science versions controller <-- vcc_unit -- : //fail// lmc <-- controller : //fail// end alt 'Set FSP Unit to Science Mode controller -> fsp_unit ++ : Set FSP Unit \nadminMode ONLINE note over fsp_unit: can only set ONLINE if\nFSP unit is not in\nuse (idle) fsp_unit -> fsp_unit : SW & FW are science versions? alt SW & FW are science versions fsp_unit --> fsp_unit : Publish adminMode change event loop #LightCyan each FSP in the FSP Unit fsp_unit --> fhs_fsp : Receive adminMode change event fhs_fsp --> fhs_fsp : Set FSP \nadminMode ONLINE end loop controller <-- fsp_unit : //result// else #LightSalmon SW & FW are //not// science versions controller <-- fsp_unit -- : //fail// lmc <-- controller : //fail// end alt lmc <-- controller -- : //result// nic <- lmc -- : **//Done "Engineering" Mode cleanup//** @enduml$

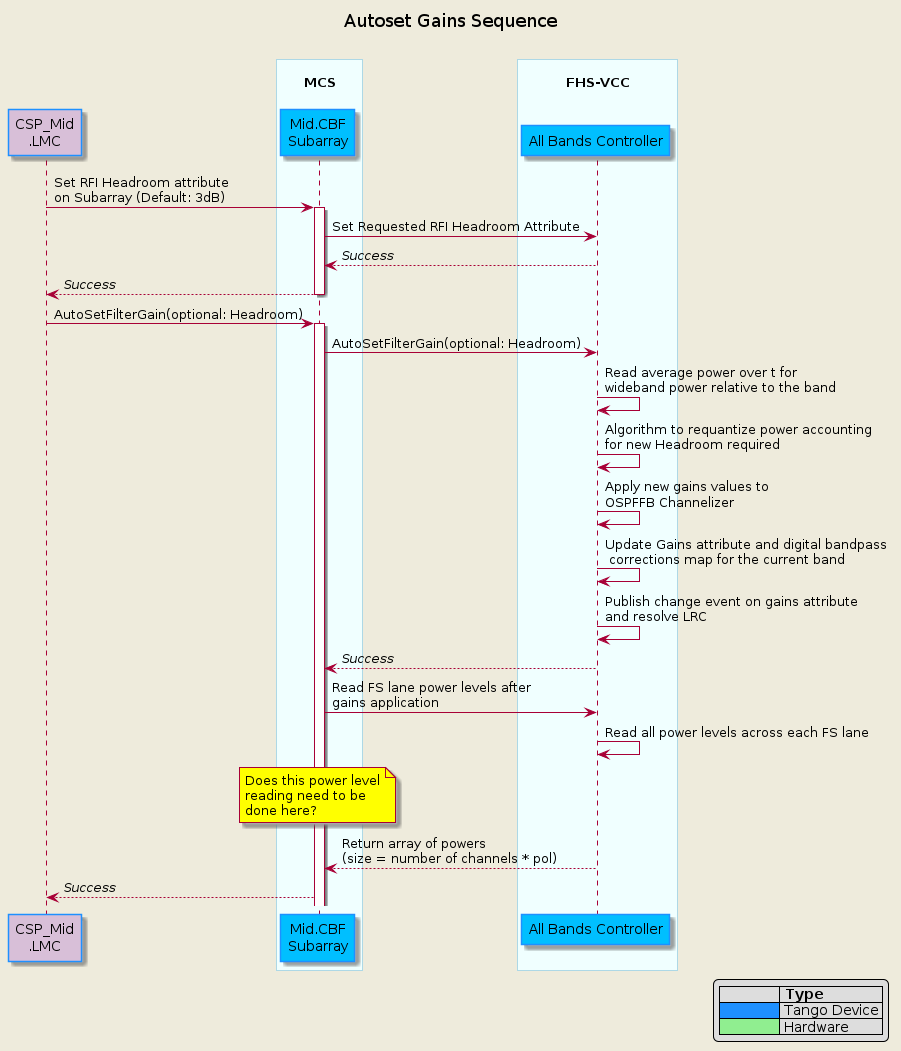

Autoset Gain

$@startuml autoset_gains !include mid-cbf-puml-definitions.txt title Autoset Gains Sequence\n participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nSubarray" as subarray end box box "\nFHS-VCC\n" participant "All Bands Controller" as allbands end box lmc -> subarray ++ : Set RFI Headroom attribute\non Subarray (Default: 3dB) subarray -> allbands : Set Requested RFI Headroom Attribute subarray <-- allbands : //Success// lmc <-- subarray -- : //Success// lmc -> subarray ++ : AutoSetFilterGain(optional: Headroom) subarray -> allbands : AutoSetFilterGain(optional: Headroom) allbands -> allbands : Read average power over t for\nwideband power relative to the band allbands -> allbands : Algorithm to requantize power accounting\nfor new Headroom required allbands -> allbands : Apply new gains values to\nOSPFFB Channelizer allbands -> allbands : Update Gains attribute and digital bandpass \n corrections map for the current band allbands -> allbands : Publish change event on gains attribute\nand resolve LRC subarray <-- allbands : //Success// subarray -> allbands : Read FS lane power levels after\ngains application allbands -> allbands : Read all power levels across each FS lane note over subarray : Does this power level\nreading need to be\ndone here? subarray <-- allbands : Return array of powers\n(size = number of channels * pol) lmc <-- subarray : //Success// @enduml$

Noise Diode

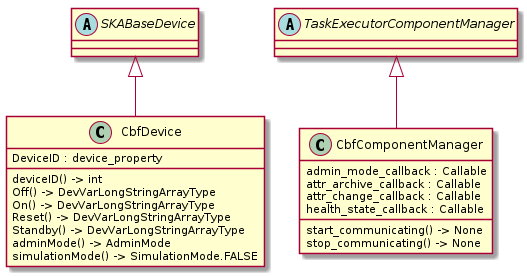

Mid.CBF Base Classes

$@startuml /'--- CbfDevice ---'/ abstract SKABaseDevice class "CbfDevice" { DeviceID : device_property deviceID() -> int Off() -> DevVarLongStringArrayType On() -> DevVarLongStringArrayType Reset() -> DevVarLongStringArrayType Standby() -> DevVarLongStringArrayType adminMode() -> AdminMode simulationMode() -> SimulationMode.FALSE } SKABaseDevice <|-- CbfDevice /'--- CbfComponentManager ---'/ abstract TaskExecutorComponentManager class "CbfComponentManager"{ admin_mode_callback : Callable attr_archive_callback : Callable attr_change_callback : Callable health_state_callback : Callable start_communicating() -> None stop_communicating() -> None } TaskExecutorComponentManager <|-- CbfComponentManager @enduml$

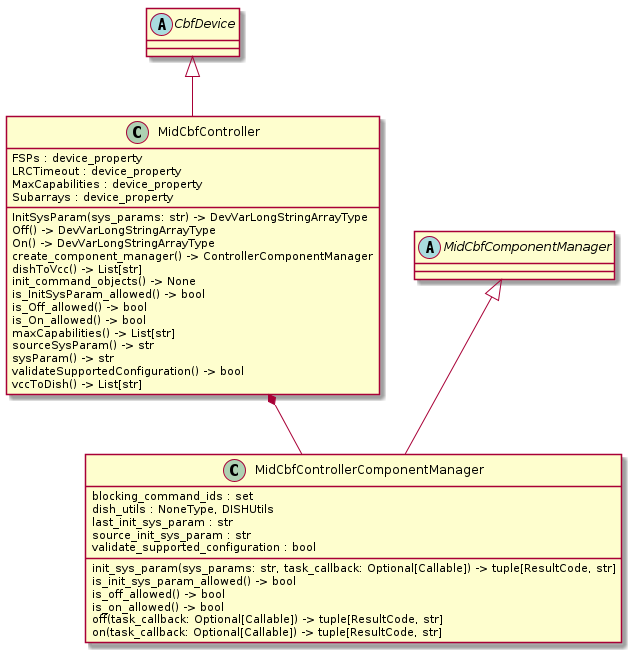

Mid.CBF Controller Classes

$@startuml /'--- MidCbfController ---'/ abstract CbfDevice class MidCbfController { FSPs : device_property LRCTimeout : device_property MaxCapabilities : device_property Subarrays : device_property InitSysParam(sys_params: str) -> DevVarLongStringArrayType Off() -> DevVarLongStringArrayType On() -> DevVarLongStringArrayType create_component_manager() -> ControllerComponentManager dishToVcc() -> List[str] init_command_objects() -> None is_InitSysParam_allowed() -> bool is_Off_allowed() -> bool is_On_allowed() -> bool maxCapabilities() -> List[str] sourceSysParam() -> str sysParam() -> str validateSupportedConfiguration() -> bool vccToDish() -> List[str] } CbfDevice <|-- MidCbfController /'--- MidCbfControllerComponentManager ---'/ abstract MidCbfComponentManager class "MidCbfControllerComponentManager"{ blocking_command_ids : set dish_utils : NoneType, DISHUtils last_init_sys_param : str source_init_sys_param : str validate_supported_configuration : bool init_sys_param(sys_params: str, task_callback: Optional[Callable]) -> tuple[ResultCode, str] is_init_sys_param_allowed() -> bool is_off_allowed() -> bool is_on_allowed() -> bool off(task_callback: Optional[Callable]) -> tuple[ResultCode, str] on(task_callback: Optional[Callable]) -> tuple[ResultCode, str] } MidCbfComponentManager <|-- MidCbfControllerComponentManager MidCbfController *-- MidCbfControllerComponentManager @enduml$

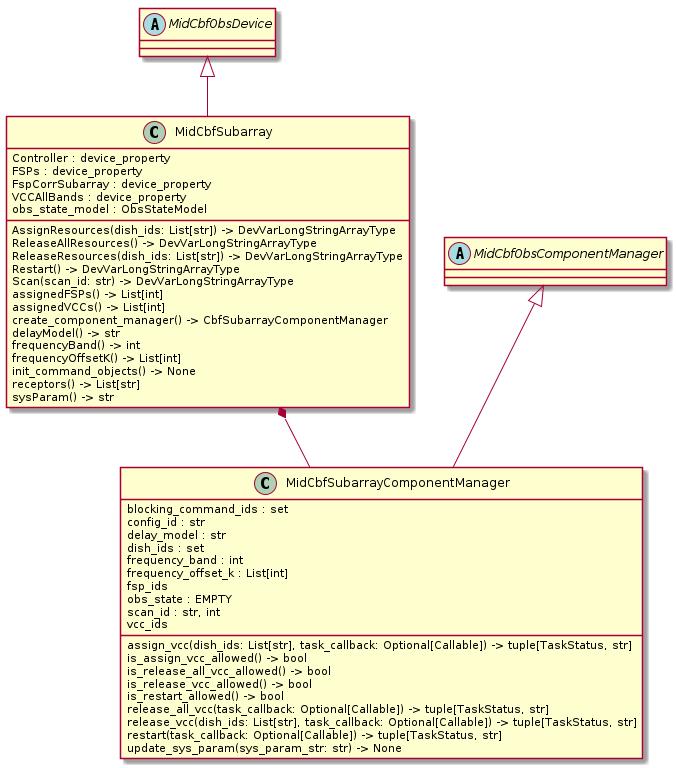

Mid.CBF Subarray Classes

$@startuml /'--- MidCBFSubarray ---'/ abstract MidCbfObsDevice abstract MidCbfObsComponentManager class "MidCbfSubarray"{ Controller : device_property FSPs : device_property FspCorrSubarray : device_property VCCAllBands : device_property obs_state_model : ObsStateModel AssignResources(dish_ids: List[str]) -> DevVarLongStringArrayType ReleaseAllResources() -> DevVarLongStringArrayType ReleaseResources(dish_ids: List[str]) -> DevVarLongStringArrayType Restart() -> DevVarLongStringArrayType Scan(scan_id: str) -> DevVarLongStringArrayType assignedFSPs() -> List[int] assignedVCCs() -> List[int] create_component_manager() -> CbfSubarrayComponentManager delayModel() -> str frequencyBand() -> int frequencyOffsetK() -> List[int] init_command_objects() -> None receptors() -> List[str] sysParam() -> str } class "MidCbfSubarrayComponentManager"{ blocking_command_ids : set config_id : str delay_model : str dish_ids : set frequency_band : int frequency_offset_k : List[int] fsp_ids obs_state : EMPTY scan_id : str, int vcc_ids assign_vcc(dish_ids: List[str], task_callback: Optional[Callable]) -> tuple[TaskStatus, str] is_assign_vcc_allowed() -> bool is_release_all_vcc_allowed() -> bool is_release_vcc_allowed() -> bool is_restart_allowed() -> bool release_all_vcc(task_callback: Optional[Callable]) -> tuple[TaskStatus, str] release_vcc(dish_ids: List[str], task_callback: Optional[Callable]) -> tuple[TaskStatus, str] restart(task_callback: Optional[Callable]) -> tuple[TaskStatus, str] update_sys_param(sys_param_str: str) -> None } MidCbfObsDevice <|-- MidCbfSubarray MidCbfObsComponentManager <|-- MidCbfSubarrayComponentManager MidCbfSubarray *-- MidCbfSubarrayComponentManager @enduml$

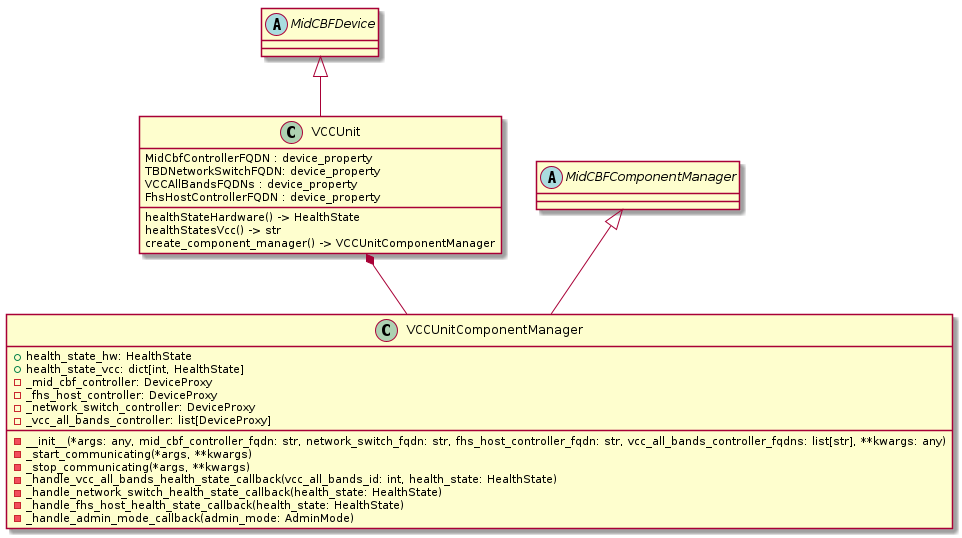

VCC Classes

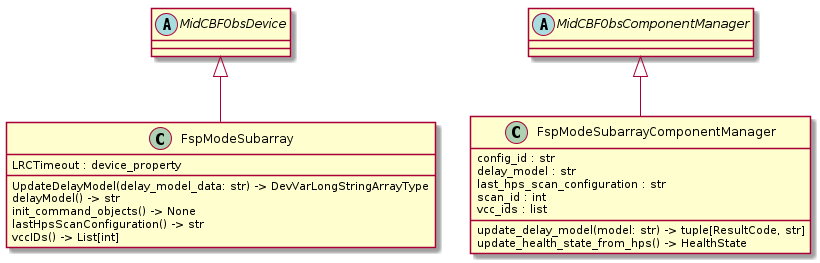

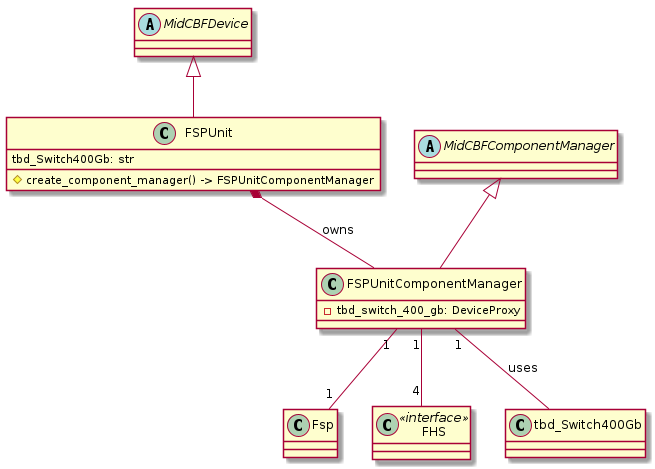

FSP Classes

$@startuml abstract MidCBFObsDevice abstract MidCBFObsComponentManager class "FspModeSubarray"{ LRCTimeout : device_property UpdateDelayModel(delay_model_data: str) -> DevVarLongStringArrayType delayModel() -> str init_command_objects() -> None lastHpsScanConfiguration() -> str vccIDs() -> List[int] } class "FspModeSubarrayComponentManager"{ config_id : str delay_model : str last_hps_scan_configuration : str scan_id : int vcc_ids : list update_delay_model(model: str) -> tuple[ResultCode, str] update_health_state_from_hps() -> HealthState } MidCBFObsDevice <|-- FspModeSubarray MidCBFObsComponentManager <|-- FspModeSubarrayComponentManager @enduml$

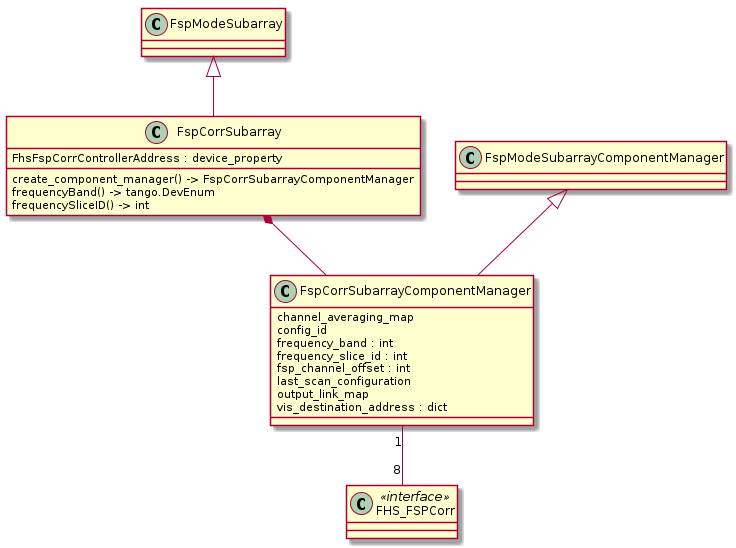

$@startuml class FspModeSubarray class FspModeSubarrayComponentManager class FspCorrSubarrayComponentManager class FHS_FSPCorr <<interface>> class "FspCorrSubarray"{ FhsFspCorrControllerAddress : device_property create_component_manager() -> FspCorrSubarrayComponentManager frequencyBand() -> tango.DevEnum frequencySliceID() -> int } class "FspCorrSubarrayComponentManager"{ channel_averaging_map config_id frequency_band : int frequency_slice_id : int fsp_channel_offset : int last_scan_configuration output_link_map vis_destination_address : dict } FspModeSubarrayComponentManager <|-- FspCorrSubarrayComponentManager FspCorrSubarray *-- FspCorrSubarrayComponentManager FspCorrSubarrayComponentManager "1" -- "8" FHS_FSPCorr FspModeSubarray <|-- FspCorrSubarray @enduml$

@startuml classes
set namespaceSeparator none
class FpgaBoardUtil

FpgaBoardUtil : -_fpga_board_lane_mapping : dict[dict[int, int]]

FpgaBoardUtil : +get_fpga_lane_vccid_fs_map(fpga_board: int, freq_slice_id: int) -> dict[dict[int, int, int]]

FpgaBoardUtil : -_generate_default(fpga_board: int, freq_slice_id: int) -> dict[dict[int, int]]

@enduml

$@startuml sync-fsp-output !include mid-cbf-puml-definitions.txt title Synchronizing FSP Output\n ' ====================================== participant "CSP_Mid\n.LMC" as lmc #Thistle box "\nMCS\n" participant "Mid.CBF\nSubarray1" as subarray collections "Mid.CBF\nFspCorrSubarray" as corr_subarray end box box "\nFHS FSP" collections "FHS FSP Corr" as fhs_fsp end box ' ====================================== ' Request resource status report lmc ->> subarray ++ : Scan() ' Controller loops through all FSPs in use by Subarray loop #LightCyan each FspCorrSubarray in use subarray ->> corr_subarray ++ : subscribe scanStartTimeRounded subarray -> subarray : set _scan_started = False subarray ->> corr_subarray : Scan() end loop loop #LightCyan each FHS FSP in use corr_subarray ->> fhs_fsp ++ : subscribe subarray1ScanStartTimeRounded corr_subarray -> corr_subarray : clear scanStartTimeRounded corr_subarray ->> fhs_fsp : Scan() corr_subarray <<-- fhs_fsp : subarray1ScanStartTimeRounded alt#Gold #LightCyan scanStartTimeRounded is None and\nsubarray1ScanStartTimeRounded is not None corr_subarray -> corr_subarray : write scanStartTimeRounded else #LightGreen scanStartTimeRounded is not None corr_subarray -> corr_subarray : do nothing end end loop loop #LightCyan each FspCorrSubarray in use subarray <<-- corr_subarray : scanStartTimeRounded end loop alt#Gold #LightCyan _scanStarted = False subarray -> subarray : set _scan_started = True loop #LightCyan each FspCorrSubarray in use subarray ->> corr_subarray : SetFirstOutputTime() end loop loop #LightCyan each FHS FSP in use corr_subarray ->> fhs_fsp : SetFirstOutputTime() end loop else #LightGreen _scanStarted = True subarray -> subarray : do nothing end lmc ->> subarray : EndScan() loop #LightCyan each FspCorrSubarray subarray ->> corr_subarray : EndScan() end loop loop #LightCyan each FHS FSP in use corr_subarray ->> fhs_fsp : EndScan() end loop @enduml$

Mid.CBF MCS Hardware Control

Hardware Control
