Cbf Base Classes

The MCS contains two types of Tango devices: observing and non-observing. Non-observing devices contain only an OpState machine while observing devices contain both OpState and ObsState machines. As shown in the inheritance diagram below, non-observing devices inherit from CbfDevice and CbfComponentManager while observing devices inherit from CbfObsDevice and CbfObsComponentManager.

@startuml /'--- CbfDevice ---'/ abstract SKABaseDevice class "CbfDevice" { DeviceID : device_property deviceID() -> int Off() -> DevVarLongStringArrayType On() -> DevVarLongStringArrayType Reset() -> DevVarLongStringArrayType Standby() -> DevVarLongStringArrayType adminMode() -> AdminMode simulationMode() -> SimulationMode.FALSE } SKABaseDevice <|-- CbfDevice /'--- CbfComponentManager ---'/ abstract TaskExecutorComponentManager class "CbfComponentManager"{ admin_mode_callback : Callable attr_archive_callback : Callable attr_change_callback : Callable health_state_callback : Callable start_communicating() -> None stop_communicating() -> None } TaskExecutorComponentManager <|-- CbfComponentManager @enduml

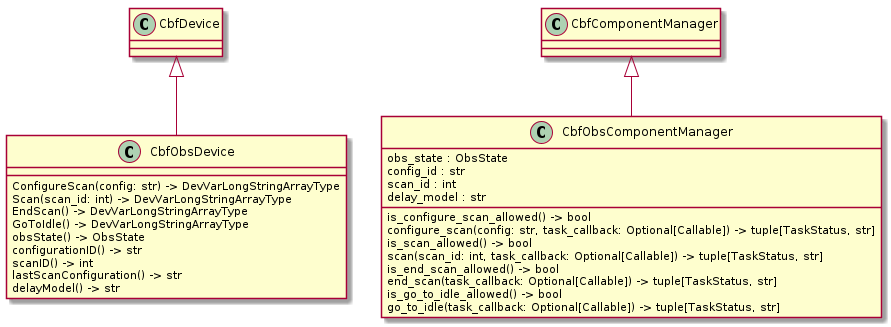

@startuml /'--- CbfDevice ---'/ class CbfDevice /'--- CbfObsDevice ---'/ class "CbfObsDevice" { ConfigureScan(config: str) -> DevVarLongStringArrayType Scan(scan_id: int) -> DevVarLongStringArrayType EndScan() -> DevVarLongStringArrayType GoToIdle() -> DevVarLongStringArrayType obsState() -> ObsState configurationID() -> str scanID() -> int lastScanConfiguration() -> str delayModel() -> str } CbfDevice <|-- CbfObsDevice /'--- CbfComponentManager ---'/ class CbfComponentManager /'--- CbfObsComponentManager ---'/ abstract CbfObsComponentManager class "CbfObsComponentManager" { obs_state : ObsState config_id : str scan_id : int delay_model : str is_configure_scan_allowed() -> bool configure_scan(config: str, task_callback: Optional[Callable]) -> tuple[TaskStatus, str] is_scan_allowed() -> bool scan(scan_id: int, task_callback: Optional[Callable]) -> tuple[TaskStatus, str] is_end_scan_allowed() -> bool end_scan(task_callback: Optional[Callable]) -> tuple[TaskStatus, str] is_go_to_idle_allowed() -> bool go_to_idle(task_callback: Optional[Callable]) -> tuple[TaskStatus, str] } CbfComponentManager <|-- CbfObsComponentManager @enduml
